Electrical equipmentHorns – introduction

Horns – introduction

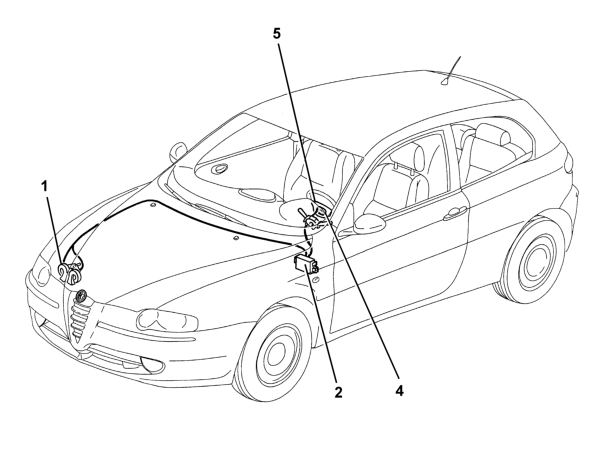

• 1 Horns
• 2 Junction unit B2
• 3 Steering column switch unit
• 4 Clock spring
• 5 Steering wheel cover

The diagram below shows a view of the assembly.

The two tone horn consists of a unit composed of two horns, fixed to a steel bracket, located in front right part of the vehicle, behind the headlamp.

The activation signal is given by pressing the centre section of the steering wheel by the spokes.
