Third brake light - r r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Warning and manoeuvring indicators › Third brake light - r r

Electrical equipmentThird brake light - r r

Third brake light - r r

Operation 5550D17 · Brake and reversing lights

Removal

See Op. 5550D16 Third stop light - r+r

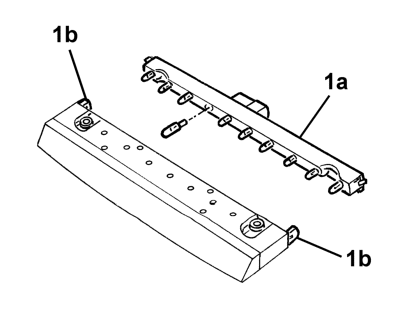

1 Release the bulb holder 1a from the retainers 1b and extract it.

2 Extract the bulb(s) (press fit).

Refitting

Fit the bulb(s).

Fit the bulb holder in the housing and attach it to the retainers.

See Op. 5550D16 Third stop light - r+r
