Electrical equipmentRearscreen wash/wipe

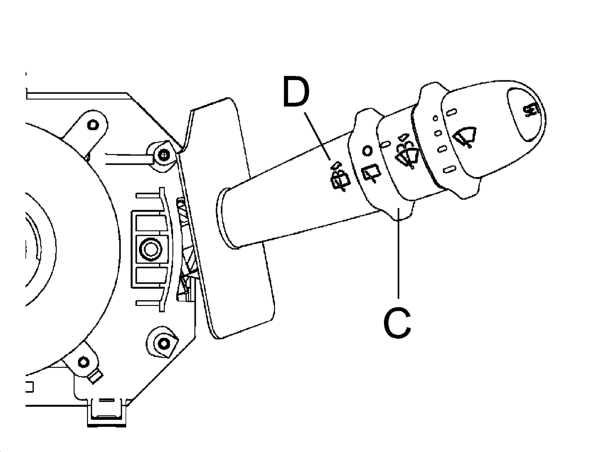

REARSCREEN WASH/WIPE
- C - Rearscreen wiper control
- D - Rearscreen washer control
This device has the task of cleaning the rearscreen effectively.
It consists of a single motor with a 12 V supply which can operate at voltages between 9 and 16 V; it has a twin metallic type overload cut-out and does not have protection against radio interference.
The wiper is constructed from a single wiper element made of a plastic arm and the linkage is internal. The jet is incorporated in the engine dust cover.
