INDICATOR PANELS

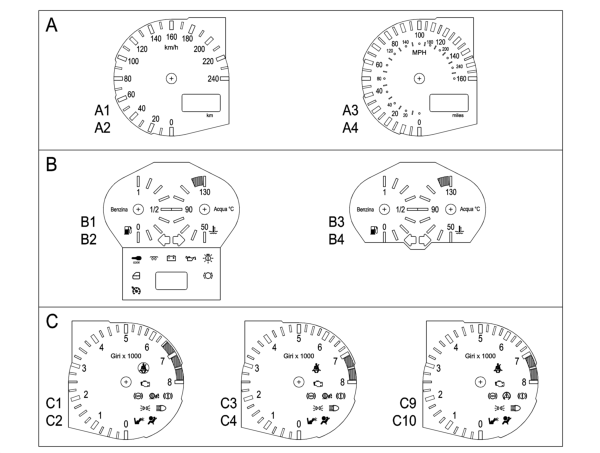

The diagram below shows the indicator panels.

PANEL A

A1 - speed indicator and milometer with grey background and display ni km/h

A2 - speed indicator and milometer with black background and display in km/h

A3 - speed indicator and milometer with grey background and display with dual scale km/h and MPH

A4 - speed indicator and milometer with black background and display with dual scale k/h and MPH

PANEL B

B1 - fuel gauge, engine temperature gauge, direction indicators, warning lights and LCD2 with grey background for LOW LINE panels

B2 - fuel gauge, engine temperature gauge, direction indicators, warning lights and LCD2 with black background for LOW LINE panels

B3 - fuel gauge, engine temperature gauge, direction indicators with grey background for HIGH LINE panels

B4 - fuel gauge, engine temperature gauge, direction indicators with black background for HIGH LINE panels

PANEL C

C1 - rev counter and warning lights with grey background for 1.6 ECO and 1.6 ECO PLUS models

C2 - rev counter and warning lights with black background for 1.6 ECO AND 1.6 ECO PLUS models

C3 - rev counter and warning lights with grey background for 1.6 HIG 2.0 petrol ASR models

C4 - rev counter and warning lights with black background for 1.6 HIG 2.0 petrol ASR models

C9 - rev counter and warning lights with grey background for 1.6 HIG 2.0 petrol and Selespeed VDC models

C10 - rev counter and warning lights with black background for 1.6 HIG 2.0 petrol and Selespeed VDC models
