Steering column trim - r+r

Operation 7040A26 · Passenger compartment trim

Removal

See Op. 7040A37 Fuse box cover - r r

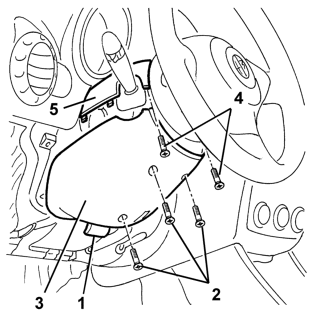

1 If necessary, regulate the steering wheel height adjustment lever.

2 Undo the bolts fixing the lower trim.

3 Remove the lower trim, releasing it from the inner retainers and the steering wheel.

4 Undo the bolts fixing the upper trim.

5 Remove the top trim.

Refitting

Check that the trims are not damaged.

Position the upper trim and secure it using the bolts.

Position the lower trim, engaging the retainers.

Tighten the screws.

See Op. 7040A37 Fuse box cover - r r

Return the steering wheel to the correct position.
