BodyFront pillar trim - r r

Front pillar trim - r r

Operation 7040H30 · Roof panel lining

Removal

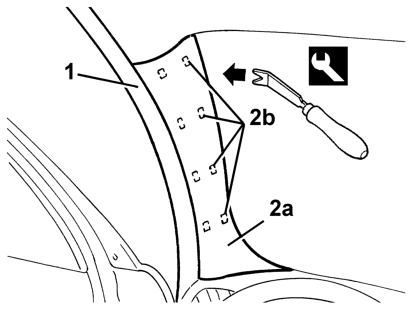

1 Remove the perimetral seal on the door frame near the front pillar trim.

2 Disengage the pillar trim 2a from the inner retainers 2b with the special tool.

Special tool 1.823.015.000 – Blade 2

Refitting

Check that the trim is undamaged.

Engage the pillar trim on the inner retainers.

Fit the sealing strip around the door frame.
