Rear courtesy light - r+r

Operation 7040E16 · Interior courtesy light system

Removal

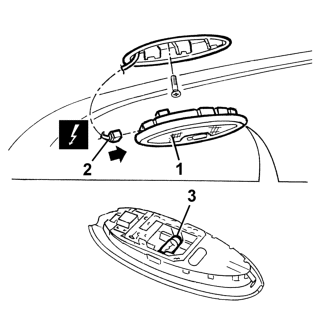

1 Remove the courtesy light.

NOTE: Work on the side shown in the diagram.

2 Disconnect the electrical connections.

Component G20 Rear courtesy light 2

3 If necessary, remove the bulb from the retaining clip.

Refitting

Check that the courtesy light is undamaged.

If the bulb was removed, refit in its socket.

Connect the electrical connection.

Fit the courtesy light.

Check the operation of the courtesy light.
