Electrical equipmentIgnition switch – composition

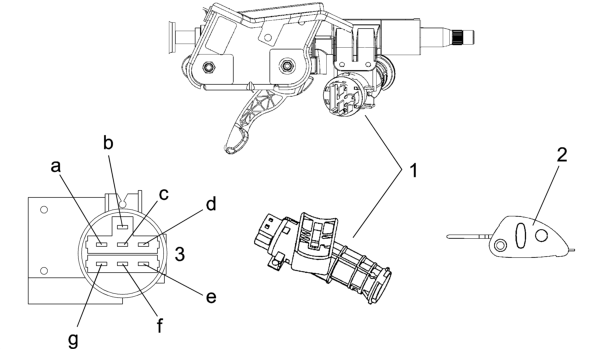

Ignition switch – composition
- 1 Ignition switch
- 2 Ignition key
- 3 Electrical connector
- a - INT
- b - INT/A
- c - POS
- d - PARK
- e - 50
- f - 30
- g - 15/54
The diagram below illustrates the ignition switch.
