Ignition switch contacts carrier block - r+r

Operation 5520A18 · Ignition switch

Removal

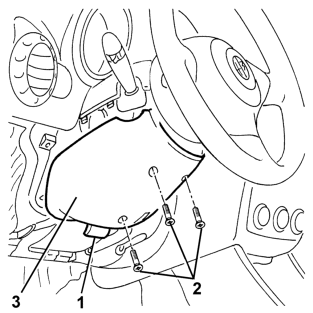

1 If necessary, regulate the steering wheel height adjustment lever.

2 Undo the bolts fixing the lower trim.

3 Remove the lower trim, releasing it from the inner retainers and the steering wheel.

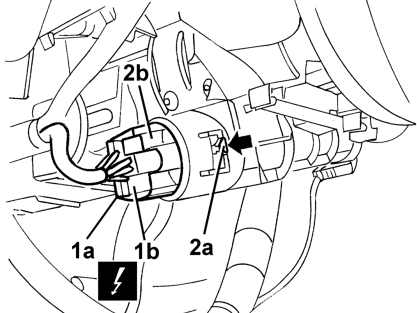

1 Disconnect the electrical connections (1a, 1b) from the ignition switch.

Component H1A Ignition switch 1a

Component H1B Ignition switch 1b

2 Release the retainers 2a and remove the contact holder connector 2b from its housing.

Refitting

Check that the contact holder connector is not damaged.

Position the contact holder connector and attach it to the retainers.

Connect the electrical connection.

Refit the lower half casing and secure it using the bolts.

Check the operation of the ignition switch.
