Ignition key block - r+r

Operation 5520A14 · Ignition switch

Removal

NOTE: It is not possible to order a single lock barrel or to order barrels simply by using a part code. When ordering barrels, observe the special procedure set out in See assembly drawing 5580E Anti-theft device .

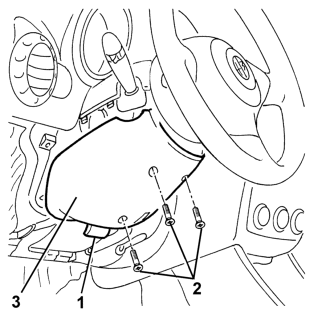

1 If necessary, regulate the steering wheel height adjustment lever.

2 Undo the bolts fixing the lower trim.

3 Remove the lower trim, releasing it from the inner retainers and the steering wheel.

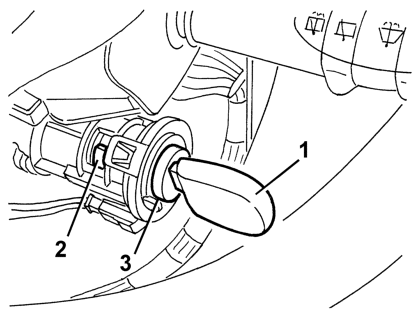

1 Insert the ignition key in the lock barrel and turn to the ON position.

2 Using a screwdriver, insert the retaining tooth.

3 Remove the lock barrel.

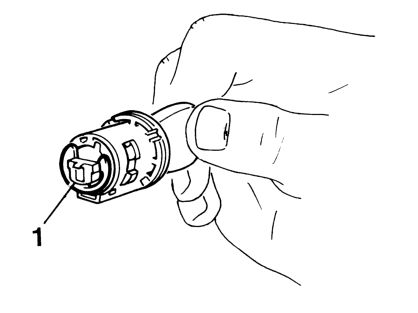

1 Remove the retaining ring at the rear of the ignition lock barrel.

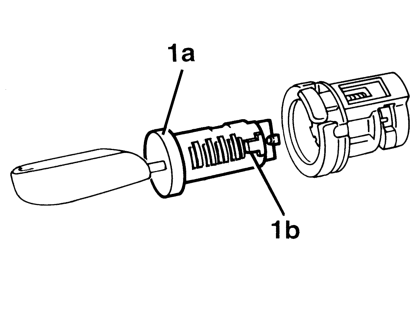

1 Press the parking lights lever 1a and turn the key until the pin 1b is positioned in the special slit.

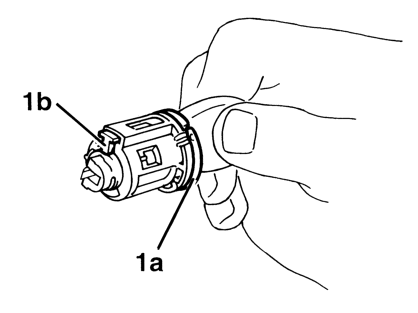

1 Partly extract the key from the lock barrel to allow the lock 1a to move down and pass through the special slit, then extract the lock barrel 1b.

Refitting

NOTE: It is not possible to order a single lock barrel or to order barrels simply by using a part code. When ordering barrels, observe the special procedure set out in See assembly drawing 5580E Anti-theft device .

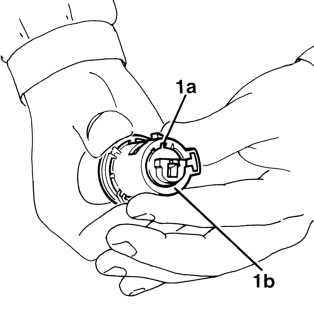

1 Fully insert the key in the lock barrel. Partly extract the key from the lock barrel to allow the lock 1a to move down and the complete lock barrel to engage in the special housing 1b.

Fit the circlip at the rear of the ignition lock barrel.

Turn the ignition key to the ON position.

Insert the barrel in the ignition and ensure that the retaining tooth is engaged.

Test the operation of the lock barrel (electrical equipment and steering lock).

Extract the ignition key.

Refit the lower half casing fixing it using the bolts.
