Aerial for alpha code - r r

Operation 5580E08 · Anti-theft device

Removal

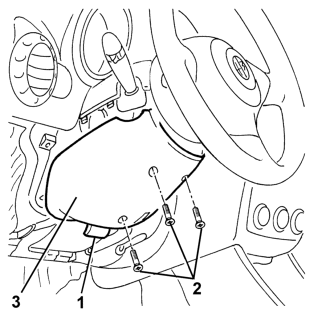

1 If necessary, regulate the steering wheel height adjustment lever.

2 Undo the bolts fixing the lower trim.

3 Remove the lower trim, releasing it from the inner retainers and the steering wheel.

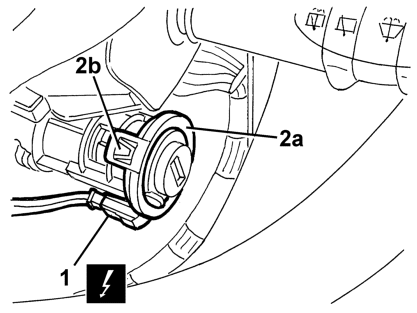

1 Disconnect the electrical connections.

Component P91 Aerial for CODE 1

2 Remove the aerial 2a from the starter connector releasing the retainers 2b.

Refitting

Check that the aerial is not damaged.

Fit the aerial on the ignition lock barrel.

Connect the electrical connection

Position the lower trim, engaging the retainers.

Tighten the screws.

Place the steering wheel in a suitable position.

Connect the battery.

Check the operation of the system using the Examiner or the other diagnostic equipment.
