ELECTRONIC CONTROL UNIT

The Air Bag protection system comprises the following:

• an electronic control unit;
• two side impact sensors (right and left);
• a switch for disabling the passenger's Air Bag;
• two front Air Bag modules for protecting the front seat occupants;
• two side protection Air Bag modules (chest, abdomen) for the front seat occupants;
• two side Air Bag modules protecting the heads of the front seat occupants and the rear side seats.
• two seat belts with pretensioners on the front seats 7065 ( Characteristic of working principle 7065 Safety belts and accessories).

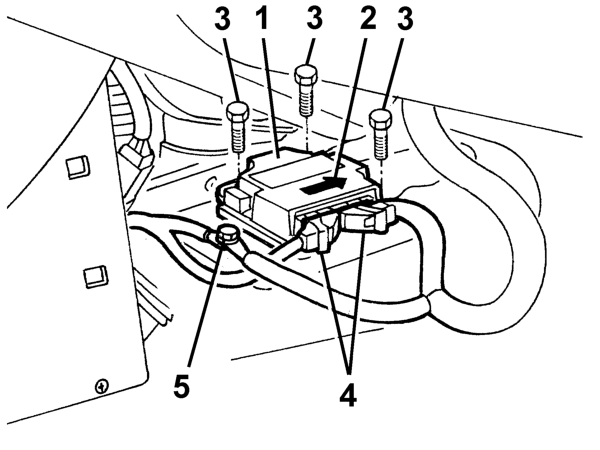

• 1 Electronic control unit
• 2 Arrow indicating direction of travel
• 3 Attachments
• 4 Electrical connections
• 5 Control unit's earth contact

View of control unit's position of assembly.
