Anti-theft device siren - r+r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Special accessories › Anti-theft device siren - r+r

Electrical equipmentAnti-theft device siren - r+r

Anti-theft device siren - r+r

Operation 5580E40 · Anti-theft device

Removal

See Op. 7055B64 Engine bay dust protection in rear wheel arch (one), lh or rh - r r (left side)

See Op. 7055B42 Supplementary wheel arch (one) - r+r (left side)

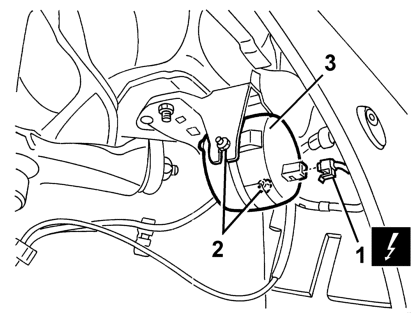

1 Disconnect the electrical connections.

Component P90 Alarm siren 1

2 Loosen the nuts fixing the alarm.

3 Remove the alarm.

Refitting

Check that the alarm is not damaged.

Position the alarm in its housing.

Tighten the nuts.

Connect the electrical connection to the alarm.

Connect the battery.

Check the operation of the system using the Examiner or the other diagnostic equipment.

See Op. 7055B42 Supplementary wheel arch (one) - r+r (left side)

See Op. 7055B64 Engine bay dust protection in rear wheel arch (one), lh or rh - r r (left side)
