Air bag ecu - r+r

Operation 5580C14 · Air bag system

Removal

NOTE: Before removing and refitting the control unit, carry out the following preliminary operations.

NOTE: FOLLOW ALL THE RECOMMENDED SAFETY FULES (See assembly drawing 5580C Air bag system ).

See Op. 7040A65 Passenger compartment box lock , one , r r (left and right sides)

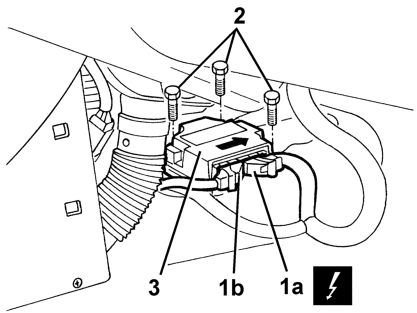

1 Disconnect electrical connections 1a, 1b.

Component M60A Air bag control unit 1a

Component M60B Air bag control unit 1b

2 Unscrew the bolts

3 Remove the control unit.

Refitting

NOTE: Before removing and refitting the control unit, carry out the following preliminary operations.

NOTE: FOLLOW ALL THE RECOMMENDED SAFETY FULES (See assembly drawing 5580C Air bag system ).

Follow these precautions:

NOTE: Do not strike the control unit and do not connect the electrical connection to the control unit before having fixed the control unit correctly. Make sure that the battery is disconnected.

NOTE: If the control unit is being replaced, remove the removable part of the adhesive label from the new control unit and place it in a special file containing the vehicle details (model, registration date, chassis number) and the serial number of the old control unit. This file should be kept for future checks.

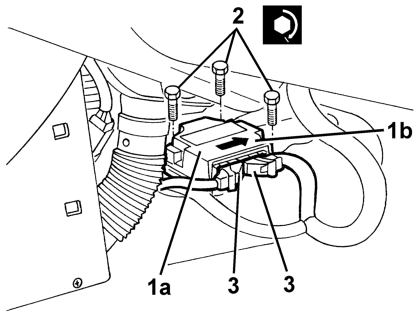

1 Position the control unit 1a. Make sure that the arrow 1b on the upper surface of the control unit is pointing in the direction of travel.

2 Tighten the bolts to the recommended torque.

Screw M6 – 2: 0.8 daNm

3 Connect the electrical connection.

See Op. 7040A65 Passenger compartment box lock , one , r r (left and right sides)

Connect the battery.

Check the operation of the system using the Examiner or the other diagnostic equipment.
