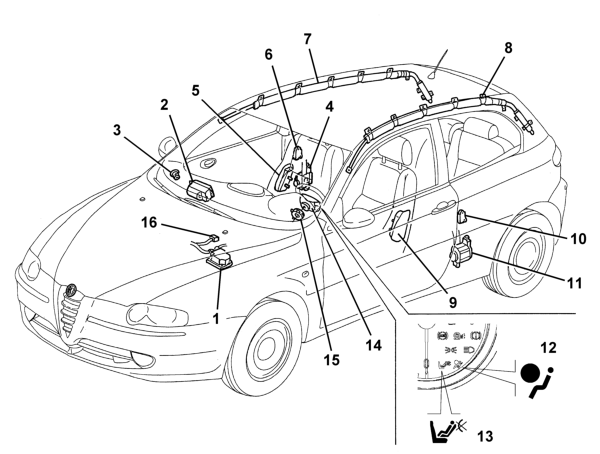

Air bag system – view of assembly
- 1 Electronic control unit
- 2 Passenger's Air Bag module
- 3 Key switch for disabling the passenger's front Air Bag
- 4 Passenger's pretensioner
- 5 Passenger's Side Bag module
- 6 Side impact satellite sensor
- 7 Passenger's Window Bag module
- 8 Driver's Window Bag module
- 9 Driver's Side Bag module
- 10 Side impact satellite sensor
- 11 Driver's pretensioner
- 12 Air Bag system failure warning light
- 13 Passenger's front Air Bag deactivation warning light
- 14 Driver's Air Bag module
- 15 Clock spring
- 16 Diagnostic socket
The following figure shows the complete configuration of the Air Bag system.
