Cruise control lever assembly - r+r

Operation 5580A10 · Cruise control system

Removal

See Op. 5580C18 Air bag module - r+r

NOTE: Before working on the Air Bag system, follow the safety instructions for working on the system very carefully (See 5580C - Air Bag System - Precautions).

See Op. 4110A11 Steering wheel - r+r for replacement or check for versions with air bag

See Op. 7040A26 Steering column trim - r+r

See Op. 5580C12 Clock spring for air bag module on steering wheel r r

NOTE: Closely follow the safety regulations established for this operation.

See Op. 5550A12 Complete stalk unit - r+r for versions with air bag

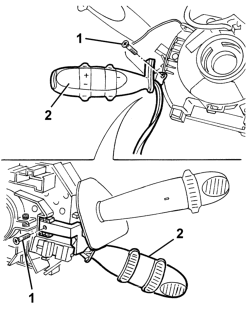

1 Working at the bench on the left side of the steering column switch unit, undo the bolts fixing the Cruise Control lever.

2 Remove the Cruise Control lever.

Refitting

Check that the Cruise Control lever is undamaged.

Fit the Cruise Control lever

Tighten the screws.

See Op. 5550A12 Complete stalk unit - r+r for versions with air bag

See Op. 5580C12 Clock spring for air bag module on steering wheel r r

See Op. 7040A26 Steering column trim - r+r

See Op. 4110A11 Steering wheel - r+r for replacement or check for versions with air bag

See Op. 5580C18 Air bag module - r+r

Check that the Cruise Control device works properly.
