Air bag module passanger side r r

Operation 5580C22 · Air bag system

Removal

NOTE: Before removing and refitting the Air Bag module, the following preliminary operations must be carried out.

NOTE: FOLLOW ALL THE RECOMMENDED SAFETY FULES (See assembly drawing 5580C Air bag system ).

See Op. 7040A14 Flap of glove compartment trim element (one) - arrange

See Op. 7040A31 Flap assembly - r r

See Op. 7040A09 Passenger air bag compartment cover - r r

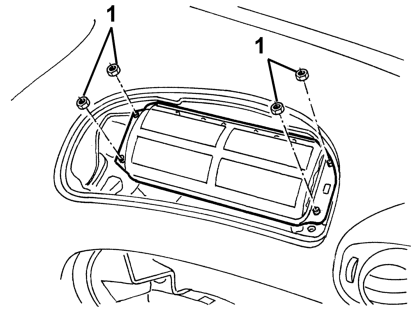

1 Undo the Air Bag module nuts.

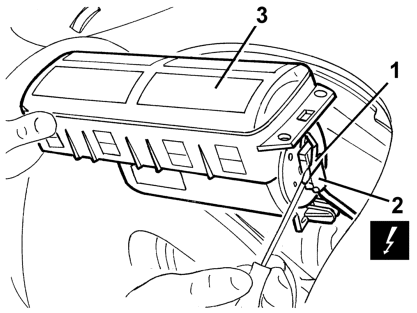

1 Move the Air Bag module slightly and, using a screwdriver, release the safety retainer for the electrical connection.

2 Disconnect the electrical connections.

Component Q11 Air Bag in dashboard (passenger side) 2

3 Recover the side Air Bag module.

Place the Air Bag module in the special cupboard, resting it on a free surface with the bag facing upwards.

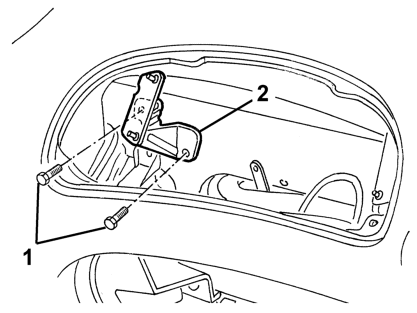

1 If necessary, undo the bolts fixing the brackets.

2 Recover the brackets.

Refitting

NOTE: Before removing and refitting the Air Bag module, the following preliminary operations must be carried out.

NOTE: FOLLOW ALL THE RECOMMENDED SAFETY FULES (See assembly drawing 5580C Air bag system ).

Observe the following precaution.

NOTE: Handle the Air Bag module with extreme caution. Ensure the battery is disconnected.

If a new module is being fitted, attach the appropriate labels. Detach the removable part of the adhesive label from the new module and put it in a specific file recording the vehicle details (model, registration data, chassis no.) and the serial no. of the old module. This file should be kept for future checks. A new label is supplied together with the module to be stuck on top of the existing one. It must be perforated first by the month, 10 years after the year in which the module is fitted (e.g. for 2000, this will be 2010).

If removed, position the brackets and secure them using the bolts.

Reconnect the electrical connection.

Attach the safety retainer.

Place the Air Bag module back in its housing.

Tighten the nuts to the recommended torque.

Nut M6 – : 0.8 daNm

See Op. 7040A09 Passenger air bag compartment cover - r r

See Op. 7040A31 Flap assembly - r r

See Op. 7040A14 Flap of glove compartment trim element (one) - arrange

Check the operation of the system using the Examiner or the other diagnostic equipment.
