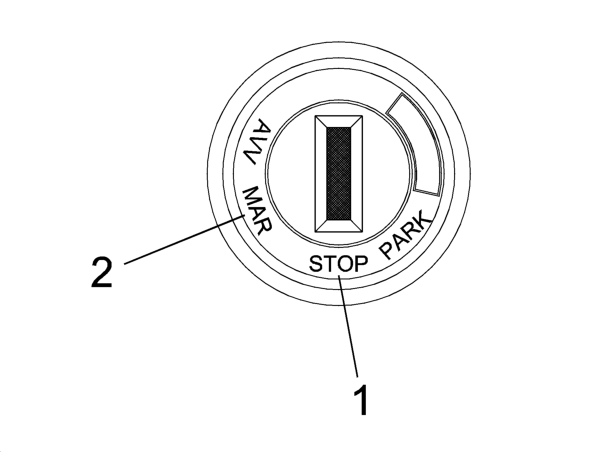

EXCLUSION OF VOLUMETRIC SENSORS

• 1 Key-OFF
• 2 Key-ON

Volumetric protection can be excluded manually in the rest state.

Exclusion of volumetric protection automatically switches off the volumetric sensors, which interrupt the emission of ultrasound.

Exclusion is activated by the ignition key by means of a consecutive sequence, in strict order, of KEY-OFF (<2 s), KEY-ON (<1s), KEY-OFF, starting from a STABLE KEY-ON state: at the end of the manoeuvre, the dissuasion warning light comes on for 2 s

to indicate that exclusion has taken place.

If, at the end of the sequence, the reoccurrence of the +15 signal lasts less than 30 s (for example to shut windows accidentally left open), the exclusion continues to remain active.

The re-enablement of the volumetric protection must take place if the occurrence of the +15 lasts over 30 s and at all events after the next switching off of the alarm system.
