Starter motor - r+r

Operation 5520B10 · Starter motor and components

Removal

Position the vehicle on the ramp.

Ensure that the ignition key is in the OFF position, then disconnect the battery negative terminal.

Component A1B Battery

Proceed with the removal See Op. 1072C44 Exhaust manifold heat shield on bulkhead - r+r .

Proceed with the removal See Op. 1080B62 Catalytic converter - r + r .

Proceed with the removal See Op. 1072C44 Exhaust manifold heat shield on bulkhead - r+r .

Proceed with the removal See Op. 1080B40 Catalytic pre-converter - r r .

Proceed with the removal See Op. 7055B54 Under-engine guard - r r .

Proceed with the removal See Op. 1072C44 Exhaust manifold heat shield on bulkhead - r+r .

Proceed with the removal See Op. 1080B40 Catalytic pre-converter - r r .

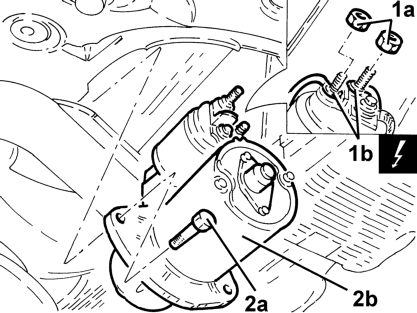

1 Undo the nuts 1a and disconnect the electrical connections from the starter motor.

Component A20 Starter motor 1b

2 Undo the bolts 2a and remove the starter motor 2b.

Refitting

Refit the starter motor in its housing and fix it tightening the bolts to the recommended torque.

Bolt M8 – Starter motor: (Gearbox side) 2.4 ÷ 3.0 daNm

Connect the electrical connections to the starter motor and fix them using the nuts.

Proceed with the refitting See Op. 1080B62 Catalytic converter - r + r .

Proceed with the refitting See Op. 1072C44 Exhaust manifold heat shield on bulkhead - r+r .

Proceed with the refitting See Op. 1080B40 Catalytic pre-converter - r r .

Proceed with the refitting See Op. 1072C44 Exhaust manifold heat shield on bulkhead - r+r .

Proceed with the refitting See Op. 1080B40 Catalytic pre-converter - r r .

Proceed with the refitting See Op. 1072C44 Exhaust manifold heat shield on bulkhead - r+r .

Proceed with the refitting See Op. 7055B54 Under-engine guard - r r .

Connect the battery terminal (-).

Remove the car from the ramp.
