BodyUnder-engine guard - r r

Under-engine guard - r r

Operation 7055B54 · Exterior protections

Removal

Place the vehicle on a lift.

Raise the vehicle.

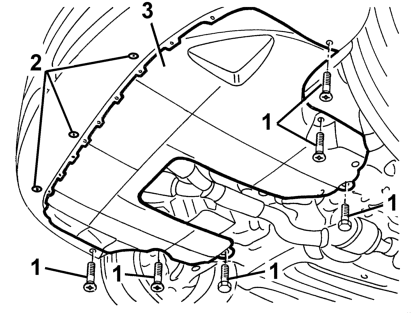

1 Undo the bolt fixing the protection under the engine.

2 Loosen the front bolts.

3 Remove the protection under the engine.

Refitting

Check that the protection under the engine is not damaged.

Fit the protection and tighten the bolts.

Remove the vehicle from the lift.
