BodyRight side front grille r r

Right side front grille r r

Operation 7055A41 · Exterior mouldings

Removal

See Op. 7055B54 Under-engine guard - r r

See Op. 7210E10 Front bumper

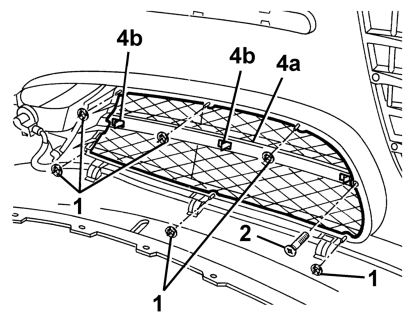

1 Remove the retaining clip.

2 Unscrew the bolts

3 Remove the grille.

4 If necessary, prise up panel 4a by releasing from retainers 4b.

Refitting

Check that the grille is not damaged.

If the panel was removed, refit and do up the retainers.

Fit the grille and secure it with the bolts and retaining clips.

See Op. 7210E10 Front bumper

See Op. 7055B54 Under-engine guard - r r
