BodyFront ornament - r r

Front ornament - r r

Operation 7055A84 · Exterior mouldings

Removal

Open the bonnet lid.

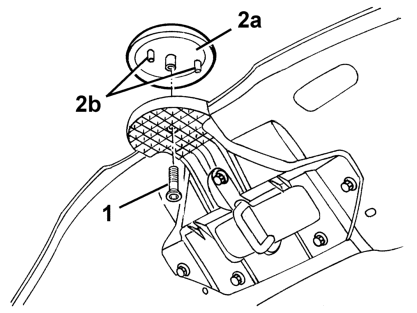

1 Unscrew the bolt.

2 Remove crest 2a by releasing from locating pins 2b.

Refitting

Check that the crest is undamaged.

Fit the crest by engaging the locating pins.

Tighten the bolt.

Close the bonnet lid.
