Windscreen base trim - r+r

Operation 7055A18 · Exterior mouldings

Removal

See Op. 5050B34 Windscreen wiper arm/s complete with blade - r+r (left and right sides)

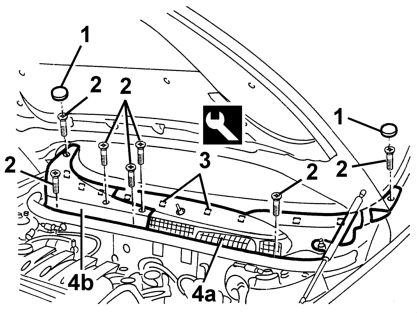

1 Remove the covers.

2 Unscrew the bolts

3 Release the inner retainers using the special tool.

Special tool 1.823.015.000 – Blade 3

4 Remove left trim 4a followed by right trim 4b.

Refitting

Check that the trim is undamaged.

Fit right trim, then left trim and do up the inner retainers.

Tighten the bolts and fit the covers.

See Op. 5050B34 Windscreen wiper arm/s complete with blade - r+r (left and right sides)
