Cover (one) on bumpers - r+r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Mouldings on protections › Cover (one) on bumpers - r+r

BodyCover (one) on bumpers - r+r

Cover (one) on bumpers - r+r

Operation 7055B26 · Exterior protections

Removal

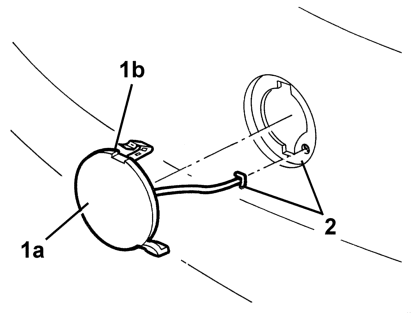

1 Remove the cover 1a using a thin flat screwdriver inserted in the relevant slot 1b.

NOTE: Take care not to damage the bumper surface.

2 Disengage the retainer from the hole and save the cover.

Refitting

Check that the cover is undamaged.

Fit the retainer in the hole.

Fit the cover in its seating.

13 Body & interior
