Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2002
- Section
- Engine ignition › Wiring diagram
Electrical equipmentWiring diagram

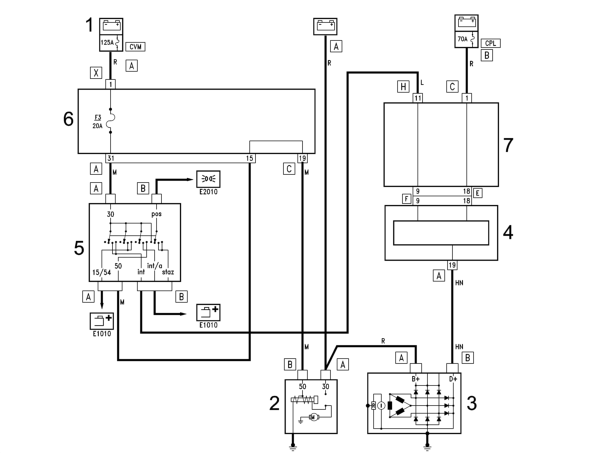

WIRING DIAGRAM
- 1 Control unit on battery
- 2 Starter motor
- 3 Alternator
- 4 Body computer
- 5 Ignition switch
- 6 Engine compartment control unit (CVM)
- 7 Control unit under dashboard (CPL)
The starter motor wiring diagram is illustrated below.
