Alfa Romeo 147 Factory Service Manual (2000-2002)16 · Connectors and pin-outs
16 · General

H1 Ignition switch

Make
Alfa Romeo
Model
147 Factory Service Manual
Year
2000–2002
Section
Manual electric controls › H1 Ignition switch
Connectors and pin-outsH1 Ignition switch

H1 Ignition switch

Connector H1A – front harness (white)

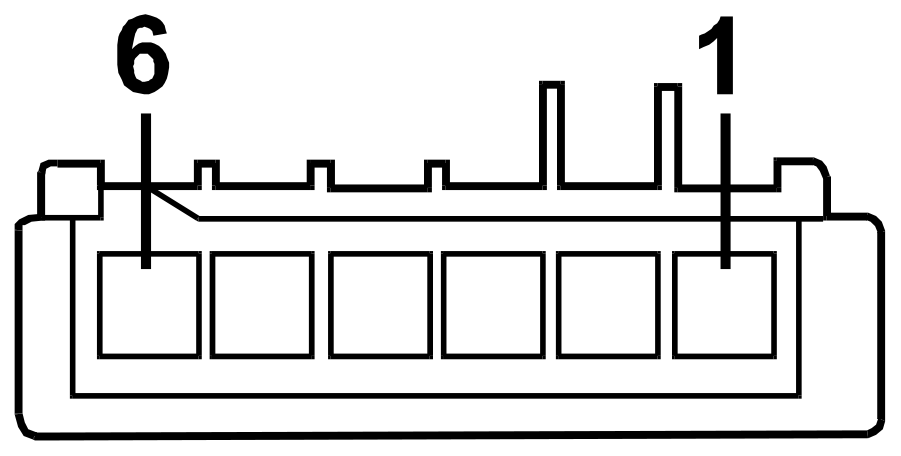

Connector H1A, Ignition switch
Pinmm²ColourTo
11.5CorangeB01A pin 30
21.5RredB01A pin 31
31.5MbrownB01A pin 15

Connector H1A – front harness (white)

Connector H1A, Ignition switch
Pinmm²ColourTo
11.5CorangeB01A pin 30
21.5RredB01A pin 31
31.5MbrownJ05 pin 1
M54B pin 76

Connector H1B – dashboard harness (white)

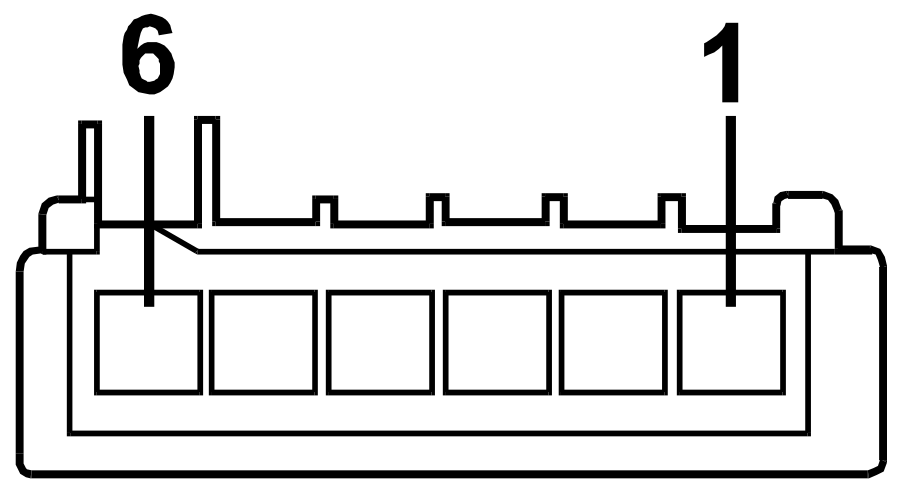

Connector H1B, Ignition switch
Pinmm²ColourTo
11.5Alight blueB02H pin 1
21.5LblueB02H pin 11
31.5GyellowB02H pin 2
