C10 Front left earth

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Ground › C10 Front left earth

Connectors and pin-outsC10 Front left earth

C10 Front left earth

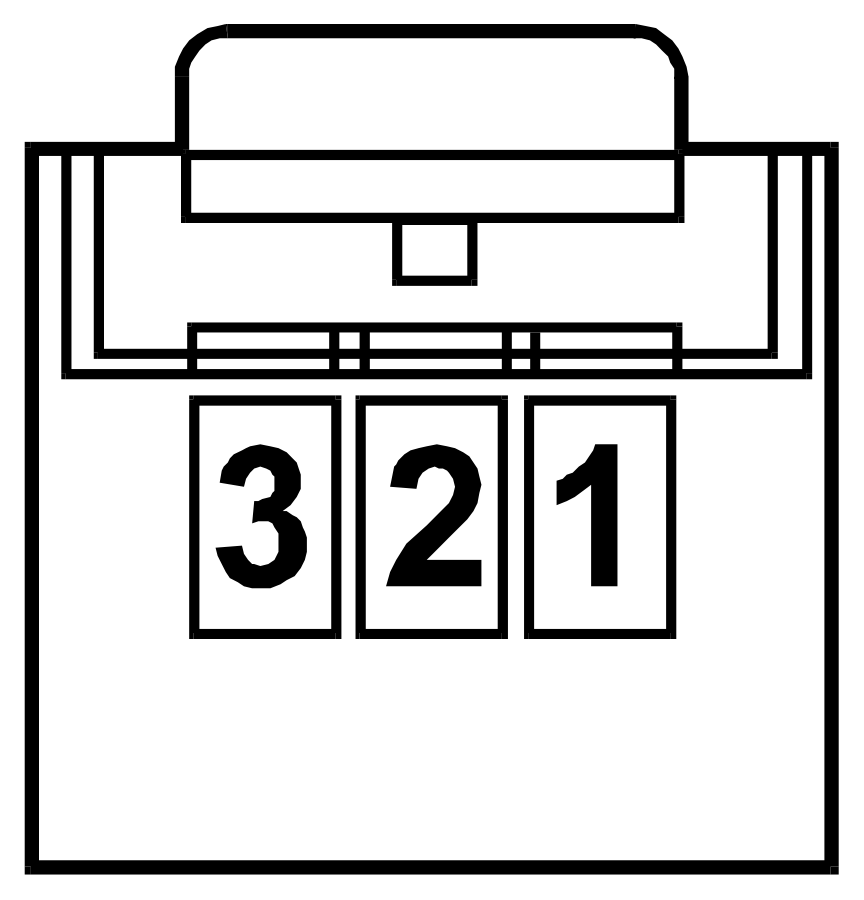

Connector C10 – front harness (black)

Pin	mm²	Colour		To
1		NV	black/green	P90 pin 3
2		NZ	black/violet	O50 pin 2
3		NZ	black/violet	K25 pin 2
4		NZ	black/violet	F10 pin 2
5	2.5	N	black	F10 pin 1
6	2.5	N	black	N15 pin 4
7		NZ	black/violet	O51 pin 2
8		NZ	black/violet	K64 pin 2
9		NZ	black/violet	F20 pin 2
10		NZ	black/violet	F21 pin 2
11		N	black	I31 pin 4
15	2.5	N	black	H05A pin 7

Connector C10 – front harness (black) – Selespeed

Pin	mm²	Colour		To
1		NV	black/green	P90 pin 3
2		NZ	black/violet	O50 pin 2
3		NZ	black/violet	K25 pin 2
4		NZ	black/violet	F10 pin 2
5	2.5	N	black	F10 pin 1
6	2.5	N	black	N15 pin 4
7		NZ	black/violet	O51 pin 2
8		NZ	black/violet	K64 pin 2
9		NZ	black/violet	F20 pin 2
10		NZ	black/violet	F21 pin 2
11		N	black	I31 pin 4
13		N	black	H37B pin 2
15	2.5	N	black	H05A pin 7
16	2.5	N	black	N47 pin B
