D68 Bose system coupling

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Intermediate junctions › D68 Bose system coupling

Connectors and pin-outsD68 Bose system coupling

D68 Bose system coupling

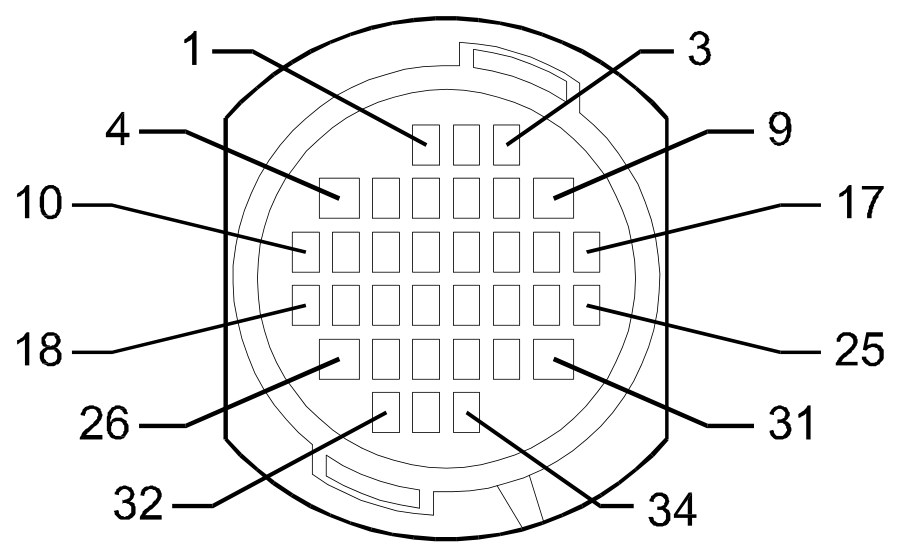

Connector D68A – cd multi-player harness (black) – System BOSE radio

Pin	mm²	Colour		To
1		RN	red/black	P70 pin 10
2		BN	white/black	P70 pin 3
3		CN	orange/black	P70 pin 8
4		CB	orange/white	P70 pin 5
5		AG	light blue/yellow	P70 pin 7
6		AR	light blue/red	P70 pin 6
7		SN	pink/black	P70 pin 9
8		NZ	black/violet	P70 pin 4
9	1.0	H	grey	P70 pin 25

Connector D68A – dashboard harness (black) – System BOSE radio

Pin	mm²	Colour		To
1	1.5	RN	red/black	P20B pin 5
2	1.5	BN	white/black	P20B pin 6
3	1.5	CN	orange/black	P20B pin 7
4	1.5	CV	orange/green	P20B pin 8
5	1.5	AG	light blue/yellow	P20B pin 1
6	1.5	AR	light blue/red	P20B pin 2
7	1.5	SN	pink/black	P20B pin 3
8	1.5	NZ	black/violet	P20B pin 4
9	1.0	H	grey	P20C pin 6

Connector D68B – rear harness (black) – System BOSE radio

Pin	mm²	Colour		To
1	1.5	RN	red/black	D30 pin 25
2	1.5	BN	white/black	D30 pin 24
3	1.5	CN	orange/black	D97F pin 3
4	1.5	CV	orange/green	D97F pin 6
5	1.5	AG	light blue/yellow	D97E pin 3
6	1.5	AR	light blue/red	D97E pin 6
7	1.5	SN	pink/black	D31 pin 23
8	1.5	NZ	black/violet	D31 pin 24

Connector D68B – cd multi-player harness (black) – System BOSE radio

Pin	mm²	Colour		To
1	1.5	RN	red/black	P70 pin 17
2	1.5	BN	white/black	P70 pin 16
3	1.5	CN	orange/black	P70 pin 20
4	1.5	CV	orange/green	P70 pin 21
5	1.5	AG	light blue/yellow	P70 pin 22
6	1.5	AR	light blue/red	P70 pin 23
7	1.5	SN	pink/black	P70 pin 18
8	1.5	NZ	black/violet	P70 pin 19

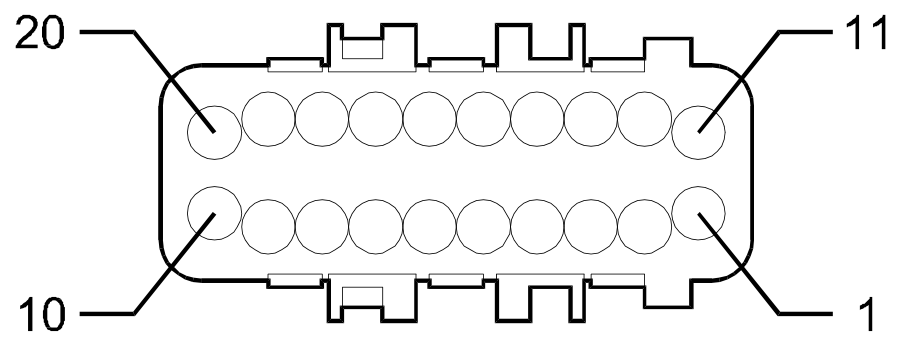

Connector D68C – cd multi-player harness (black) – System BOSE radio

Pin	mm²	Colour		To
1	2.5	R	red	P70 pin 12
2	2.5	RG	red/yellow	P70 pin 13

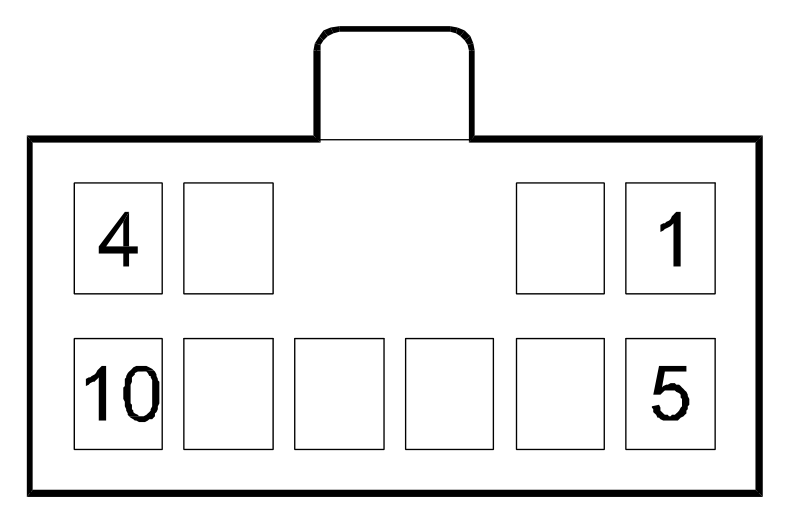

Connector D68C – rear harness (black) – System BOSE radio

Pin	mm²	Colour		To
1	2.5	R	red	B98 pin 2
2	2.5	RG	red/yellow	B98 pin 3

Wiring diagrams

• E3510
