D1 Front / dashboard coupling

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Intermediate junctions › D1 Front / dashboard coupling

Connectors and pin-outsD1 Front / dashboard coupling

D1 Front / dashboard coupling

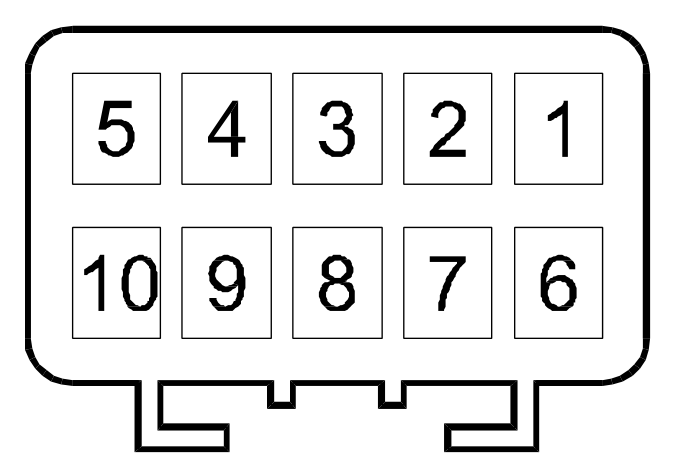

Connector D1 – front harness (black)

Pin	mm²	Colour		To
4		HV	grey/green	M54B pin 77
7		NV	black/green	C11 pin 16 M54A pin 1 H37 pin 1 D79 pin 8 D79 pin 5
8		HR	grey/red	M54B pin 75
9		NZ	black/violet	M50 pin 21
10		CA	orange/light blue	M50 pin 8
11		BO	white/O	M50 pin 41
12		LC	blue/orange	M50 pin 39
13		MZ	brown/violet	M50 pin 9
14		AR	light blue/red	M50 pin 10
15		M	brown	D97B pin 2
16		V	green	D97B pin 5

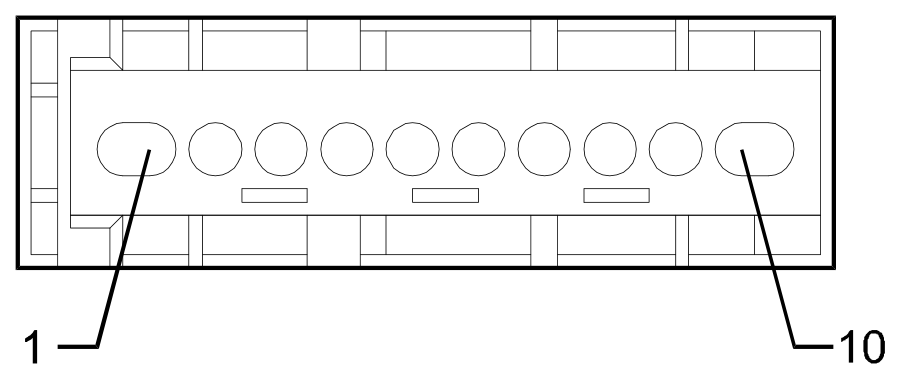

Connector D1 – dashboard harness (black)

Pin	mm²	Colour		To
4		HV	grey/green	D43 pin 8
7		NR	black/red	D47 pin 7
8		HR	grey/red	D47 pin 8
9		NZ	black/violet	D97C pin 1
10		CA	orange/light blue	K74 pin 5
11		BV	white/green	K74 pin 4
12		LG	blue/yellow	D97C pin 4
13		MZ	brown/violet	K74 pin 2
14		AR	light blue/red	K74 pin 1
15		M	brown	K58 pin 4
16		V	green	K58 pin 3

Wiring diagrams

• E1050
• E7022
• E7051
