Sliding roof spoiler - r+r

Operation 7030B42 · Sliding roof

Removal

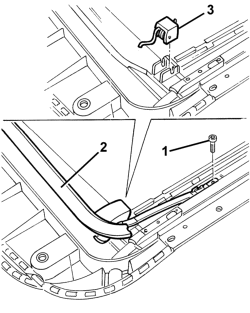

Move the lens backwards to gain access to the bolt 1 securing the spoiler.

1 From both sides, unscrew the bolt securing the spoiler.

2 Remove the spoiler.

3 If necessary, remove the clip with support.

Refitting

Check that the spoiler is undamaged.

If removed, fit the clip with support.

Fit the spoiler in position and secure it with the bolts.

Test the operation of the spoiler by opening and closing the sun roof.
