Bonnet

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Stripping for replacement interventions › Bonnet

Body panels and reinforcementBonnet

Bonnet

Operation 7205E20 · Exterior parts

Removal

See Op. 7025A22 Soundproofing lining for bonnet lid - r+r

See Op. 5050B10 Front windscreen washer jets - r+r clean and/or position (left and right sides)

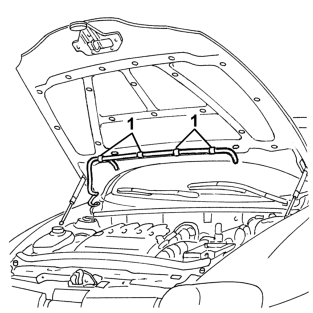

1 Disconnect the pipe from the windscreen washer jets.

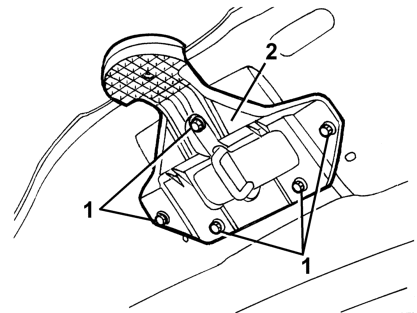

1 Unscrew the bolts

2 Remove the crest mount.

Refitting

Check that the parts to be refitted are undamaged.

Position the crest mount and secure with bolts.

Position the windscreen wiper pipe.

See Op. 5050B10 Front windscreen washer jets - r+r clean and/or position (left and right sides)

See Op. 7025A22 Soundproofing lining for bonnet lid - r+r
