Front bumpers

Operation 7205E10 · Exterior parts

Removal

See Op. 7055A40 Radiator shield - r r

See Op. 7055A41 Right side front grille r r (left and right sides)

See Op. 7055B26 Cover (one) on bumpers - r+r

See Op. 7055B32 Protective moulding on front bumper (1), lh or rh - r r (left and right sides)

See Op. 5550C30 L/h or r/h front turn signal (one) - r+r

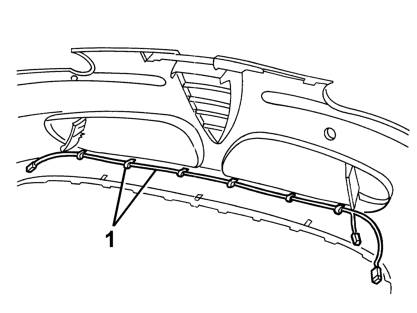

1 Disconnect the front direction indicator wiring from the retainers, then remove.

Refitting

Check that the removed parts are undamaged.

Posiiton the front direction indicator wiring and secure to the retainers.

See Op. 5550C30 L/h or r/h front turn signal (one) - r+r

See Op. 7055B32 Protective moulding on front bumper (1), lh or rh - r r (left and right sides)

See Op. 7055B26 Cover (one) on bumpers - r+r

See Op. 7055A41 Right side front grille r r (left and right sides)

See Op. 7055A40 Radiator shield - r r
