Soundproofing lining for bonnet lid - r+r

Operation 7025A22 · Bonnet lid

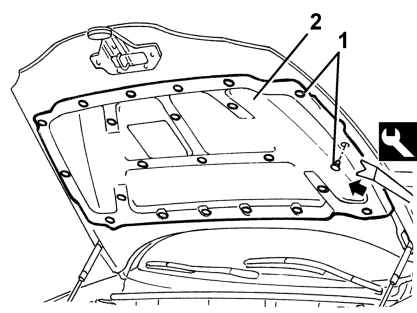

Removal

Lift the bonnet lid.

1 Disengage the retaining buttons using the special tool.

Special tool 1.823.015.000 – Blade 1

2 Remove the soundproofing trim.

Refitting

Check that the soundproofing trim is undamaged.

Fit the soundproofing trim.

Engage the retaining buttons.
