Fuel filler flap
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2002
- Section
- Compartment covers lids › Fuel filler flap
BodyFuel filler flap

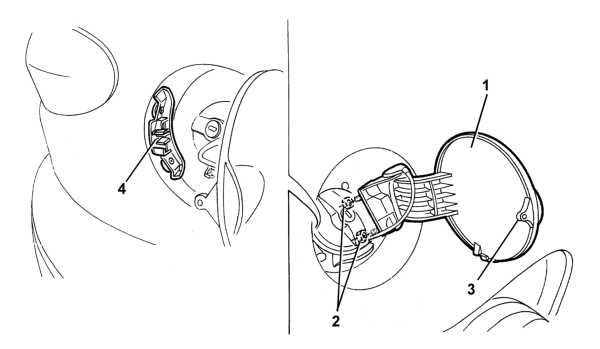

FUEL FILLER FLAP
- 1 Fuel filler flap
- 2 Retaining nuts
- 3 Pin
- 4 Flexible flap retaining seat
View of fuel filler flap
The fuel filler flap is made out of plastic in the same shade as the body and can be operated manually from outside.
The flap hinge mount is secured by two nuts accessible from inside the wheel arch. A pin on the inside of the flap fits into a flexible seat to hold the flap closed.
