Bonnet lid opening control - repair

Operation 7025A26 · Bonnet lid

Removal

See Op. 7025A34 Bonnet lid lock (one) - r+r or repair

See Op. 7025A24 Boot lid opening lever - r+r

Working in the passenger compartment, connect a sensor to the inner end of the opening cable (this operation is necessary to facilitate the subsequent refitting of the opening cable inside the passenger compartment).

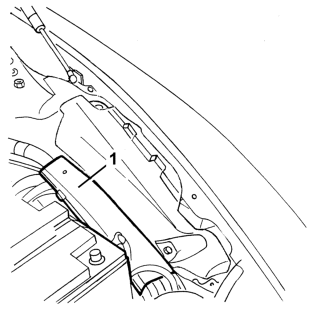

1 Working in the engine compartment, open the cable duct.

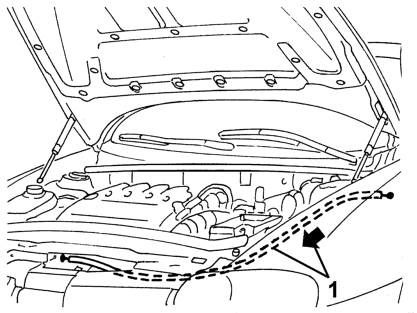

1 Remove the opening cable pulling it from the engine compartment.

Refitting

Check that the opening control cable is not damaged.

Reposition the control cable inserting it from the engine compartment side and using the sensor positioned during the removal.

Remove the sensor.

Close the cable duct.

See Op. 7025A24 Boot lid opening lever - r+r

See Op. 7025A34 Bonnet lid lock (one) - r+r or repair
