Power steering fluid reservoir - r+r - includes bleeding

Operation 4130B10 · Power steering hydraulic sytem

Removal

Proceed with the removal See Op. 1016A40 Ignition coil cover on cylinder head- r+r .

Proceed with the removal See Op. 1008C10 Power unit reaction link - replace .

Remove the power steering fluid reservoir cap and drain the fluid using a suitable syringe.

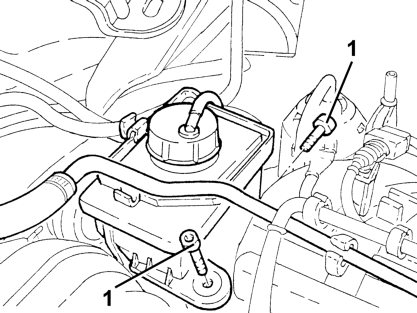

1 Undo the bolts securing the power steering fluid reservoir.

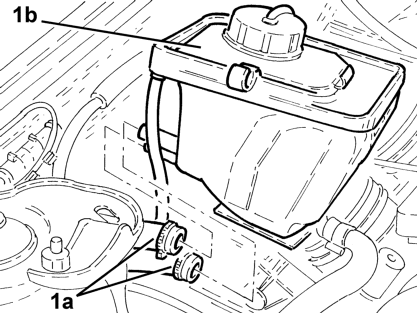

1 Disconnect the inlet and outlet hoses 1a, then remove the power steering fluid reservoir 1b.

Refitting

Reift the power steering fluid reservoir and connect the fluid inlet and outlet pipes.

Tighten the power steering fluid reservoir bolts.

Proceed with the refitting See Op. 1008C10 Power unit reaction link - replace .

Proceed with the refitting See Op. 1016A40 Ignition coil cover on cylinder head- r+r .

Fill the power steering circuit with the recommended fluid.

Product for POWER ASSISTED STEERING CIRCUIT: Liquid

Bleed the power steerign system as described below.

With the front wheels raised off the ground, with the engine switched off, carry out 4-5 complete steering wheel rotation cycles (left and right).

Check and, if necessary, top up the fluid level in the reservoir.

Position the vehicle on the ground and start up the engine.

Carry out 4 - 5 complete steering wheel rotations (right and left).

Top up the fluid level in the reservoir.
