SteeringJunction box

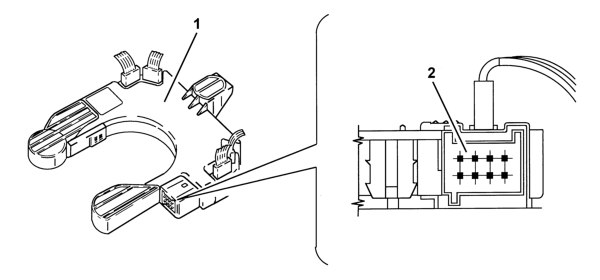

Junction box
- 1 Junction box
- 2 Pin out
VIEW OF PIN OUT
The connection to the electrical system is via a junction box, located on the bottom of the Air Bag module housing.
On the box, to which all the electrical functions of the steering wheel lead, there is an 8-pin connector which is connected to the corresponding connector emerging from the clock spring 5580C"
parttype="TS ( Characteristic of working principle 5580C Air bag system).
