Steering control – specifications:
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2002
- Section
- Steering control and linkage › Steering control – specifications:
SteeringSteering control – specifications:

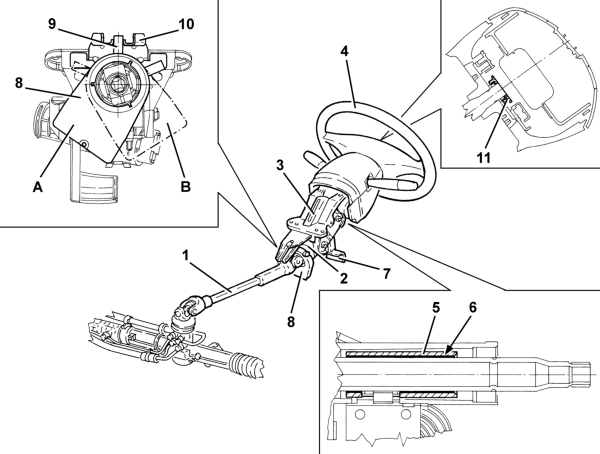

Steering control – specifications:
- 1 Lower steering column
- 2 Upper steering column
- 3 Magnesium support
- 4 Steering wheel
- 5 Friction bush
- 6 Ring spring
- 7 Locking handle
- 8 Position sensor
- 9 Pin
- 10 Anchoring fork
- 11 Protective cap
- A - Position sensor for left-hand drive
- B - Position sensor for right-hand drive
VIEW OF STEERING COLUMN
