Rear suspension stabilizer bar - r+r

Operation 4420C10 · Rear suspension stabilizer bar/links

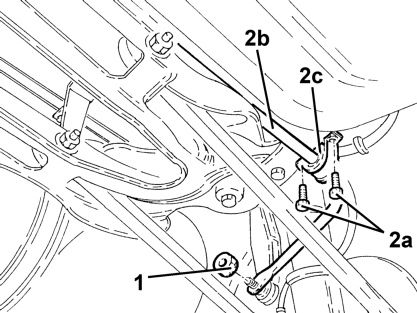

Removal

Position the vehicle on the ramp.

1 Undo the nuts securing the rear suspension anti-roll bar joints to the antiroll bar.

2 Undo bolts 2a and remove rear suspension antiroll bar 2b complete with mounting blocks 2c.

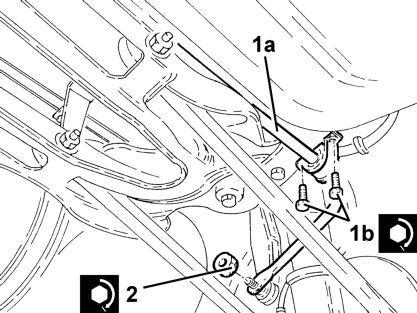

Refitting

1 Refit rear suspension antiroll bar 1a, complete with mounting blocks, and secure it by tightening the bolts 1b to the recommended torque.

Bolt M8 – Rear anti-roll bar 1b: (Rear suspension crossmember side) 3.6 ÷ 4.4 daNm

2 Tighten the nuts securing the rear suspension antiroll bar joints to the antiroll bar to the specified torque.

Nut M10 – Rear anti-roll bar pivots 2: (Anti-roll bar side) 4.1 ÷ 5.0 daNm

Remove the car from the ramp.
