Alfa Romeo 155 Factory Service Manual (1992-1998)07 · Engine – mechanical (V6)
07 · Engine

Fan caution (page 3 of 6)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Fan caution
Engine – mechanical (V6)Fan caution · page 3 of 6
  1. Remove the grill (see GROUP 75).

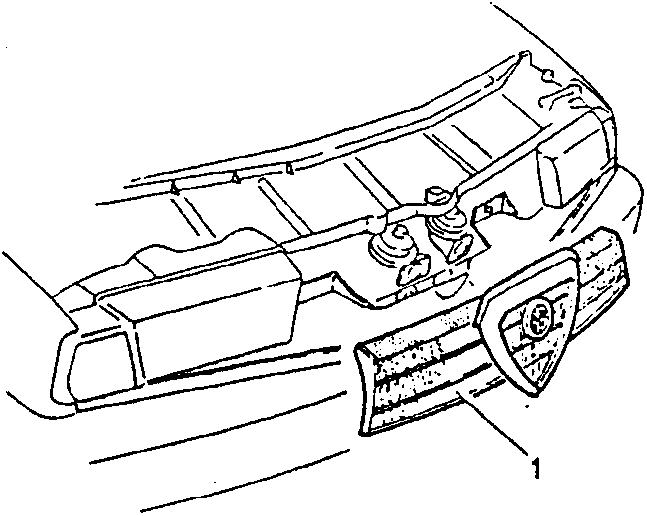

Front view of vehicle front end showing grille and trim strips
  1. Unscrew the side nut securing the two strips of trim to the body and remove them.

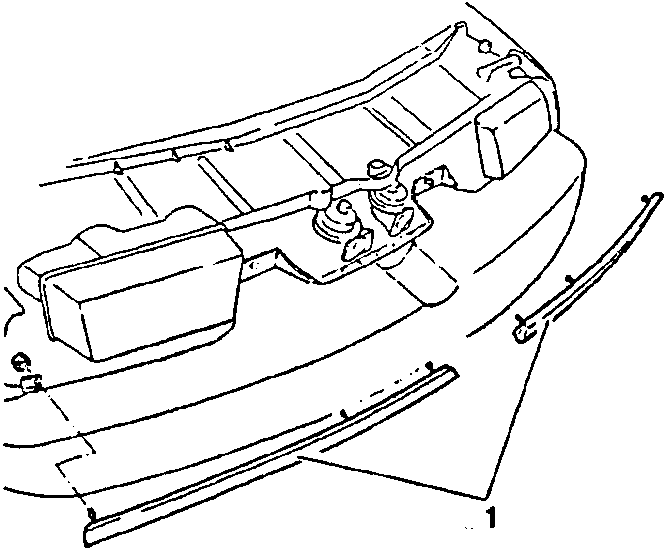

Front view of vehicle front end showing trim strips being removed
  1. Remove the front direction indicators (see GROUP 40).

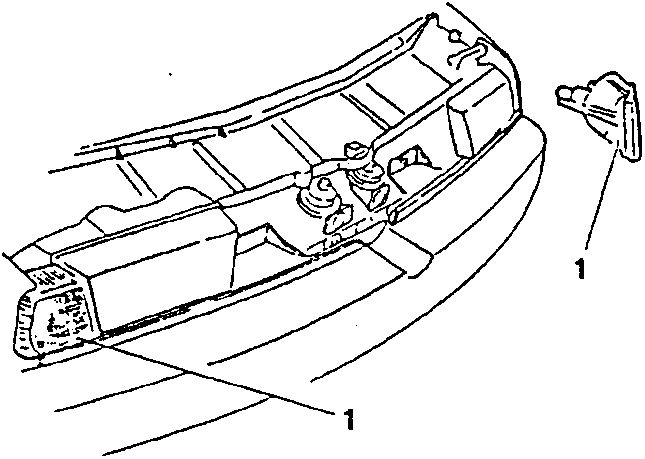

Front view of vehicle front end showing direction indicator removal
  1. Remove the front bumper (see GROUP 75)

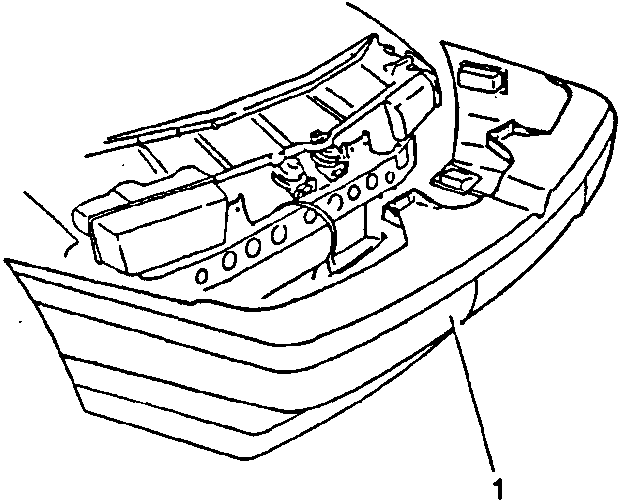

Front view of vehicle front end showing bumper removal
