Engine – mechanical (V6)Fan caution · page 5 of 6

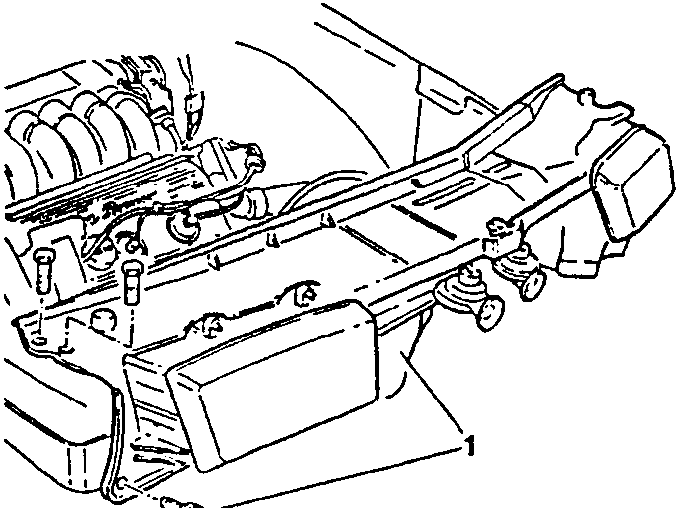

- Unscrew the screws fixing the upper cross member to the body and remove it complete with headlights and horns.

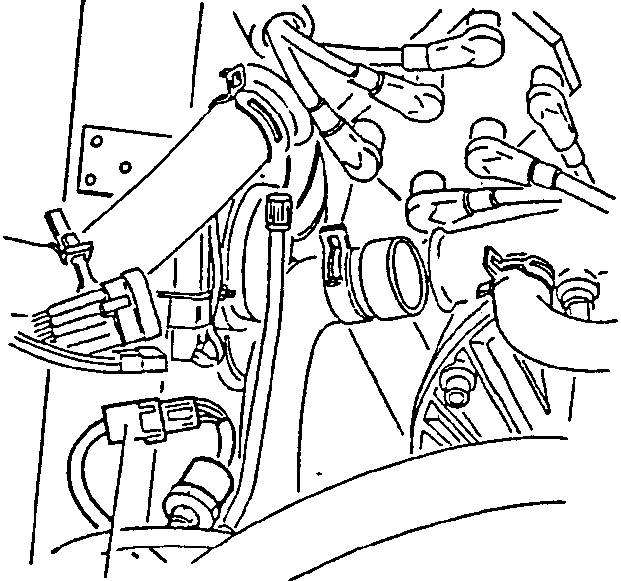

- Disconnect the pressure switch (trinary) connection of the air conditioning system.

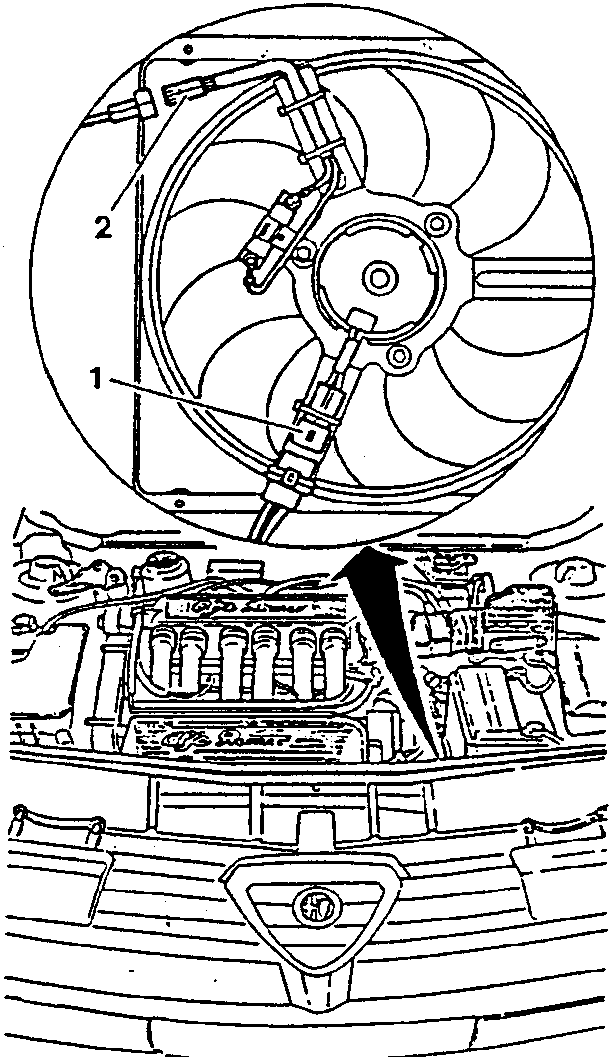

- Disconnect the electrical connections from the electric cooling fan.
- Disconnect the electrical connections from the electric fan resistor.
