Engine – mechanical (V6)Fan caution · page 4 of 6

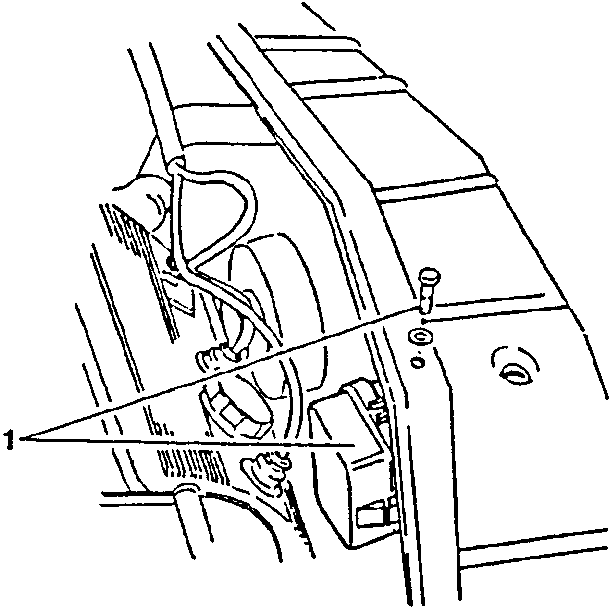

  1. Unscrew the screws securing the relay box to the cross member. Move the relay box and tie it so that it does not interfere with the removal of the engine.
relay box secured to cross member

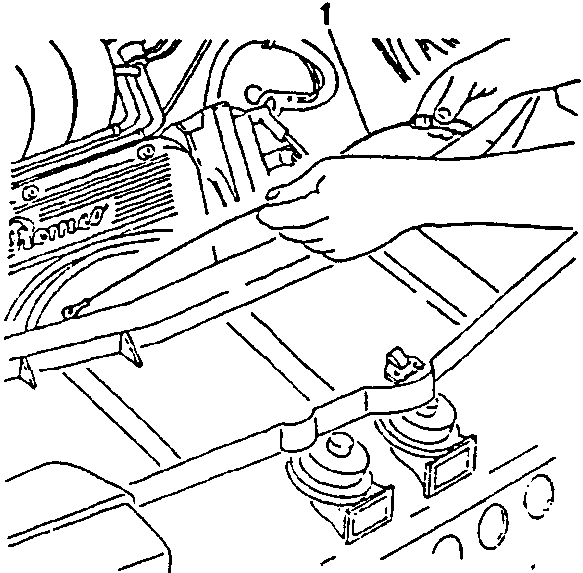

  1. Disconnect the bonnet release cable from the two locks (see GROUP 56).
bonnet release cable disconnected from locks

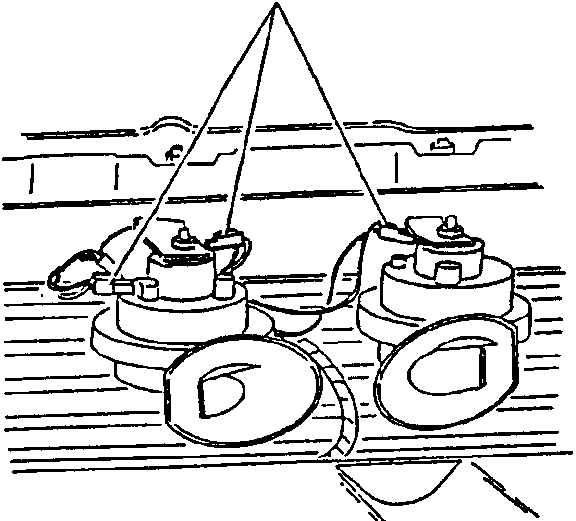

  1. Disconnect the electrical connections from the horns.
electrical connections from horns

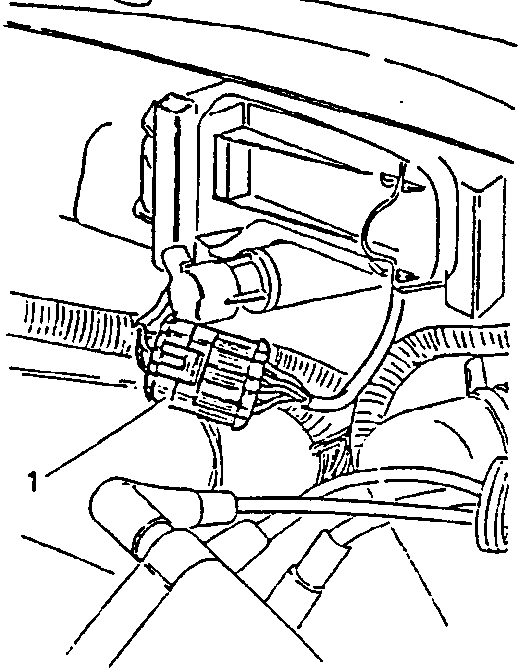

  1. Disconnect the electrical connections from the headlight assemblies.
electrical connections from headlight assemblies
