Fan caution (page 6 of 6)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Fan caution

Engine – mechanical (V6)Fan caution · page 6 of 6

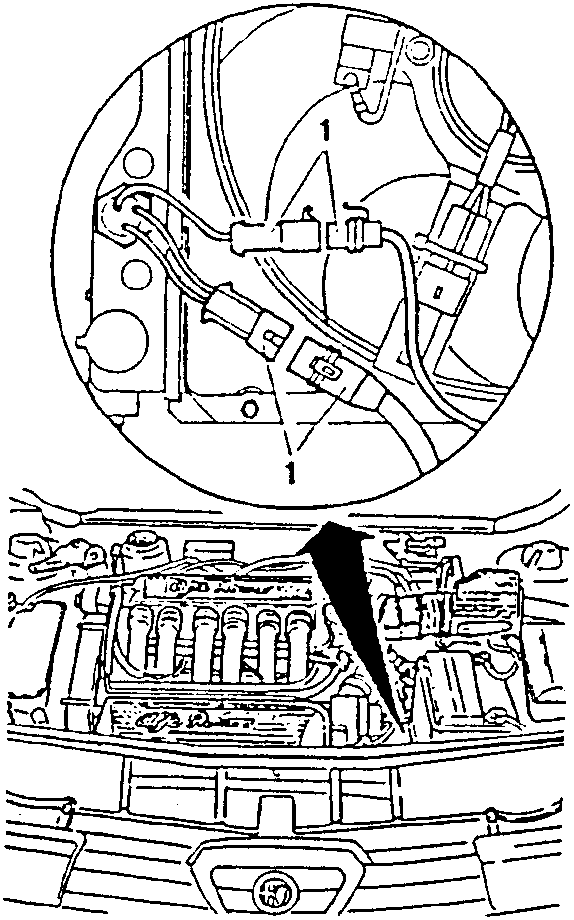

1. Disconnect the two connections of the engine cooling fan thermal contact.

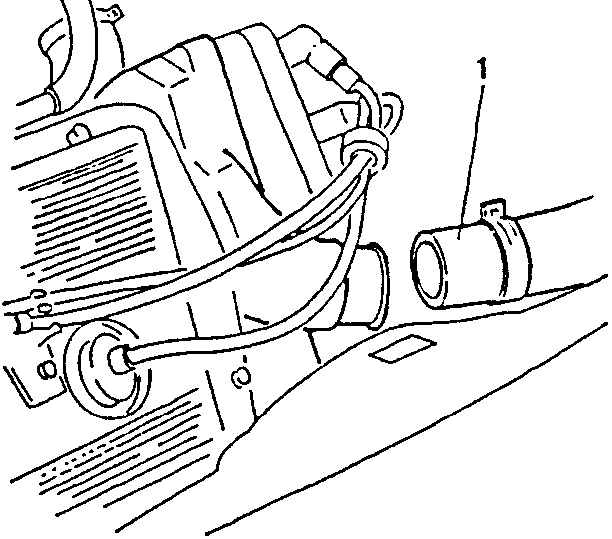

1. Disconnect engine coolant to radiator connecting sleeve from ignition coil support.

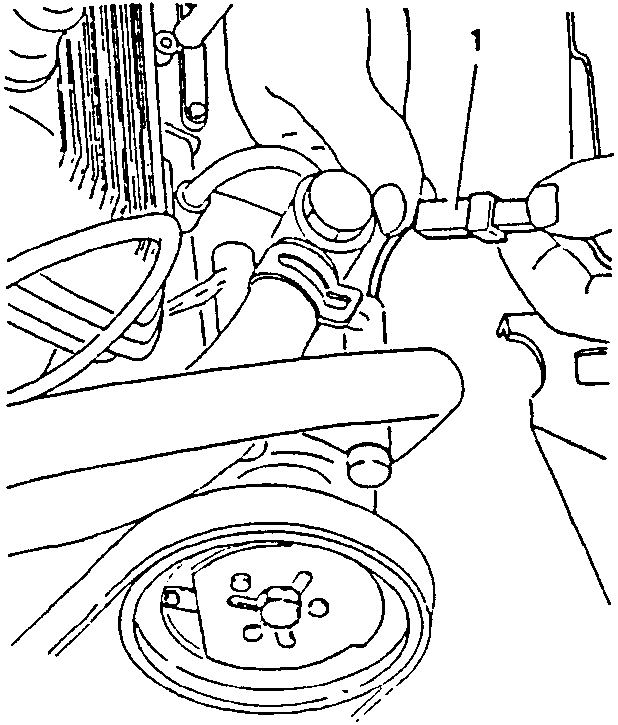

1. Disconnect the supercharger supply cable connection of the conditioning system.

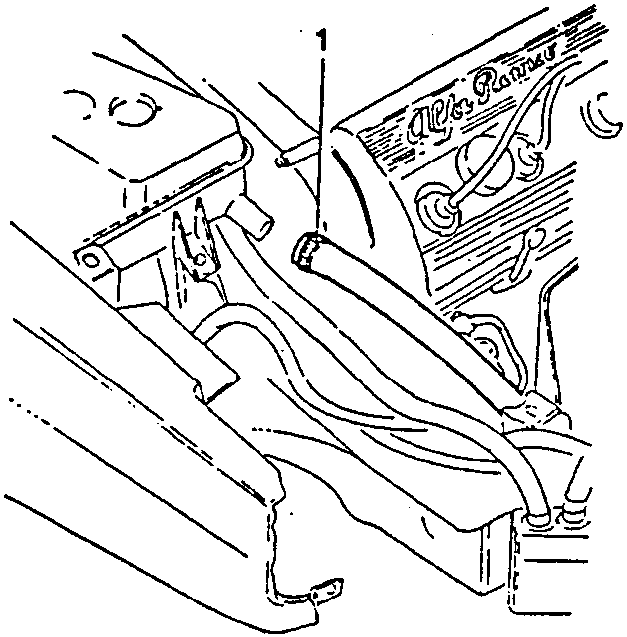

1. Disconnect the engine coolant to radiator delivery hose from the expansion tank.

07 Engine
