Vehicle characteristics and maintenanceEgr valve removal · page 2 of 5
  1. Loosen the upper screws securing the timing cover.
Engine with timing cover and upper screws

– Raise the vehicle.

  1. Loosen the two bolts securing the alternator.
Alternator with two bolts
  1. Remove the alternator - water pump drive belt.

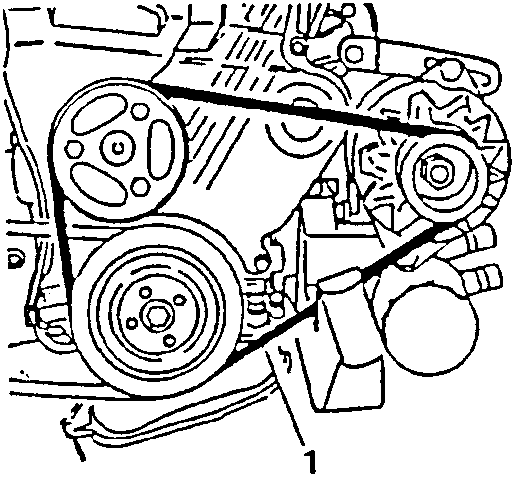

Alternator and water pump drive belt
  1. Loosen the retaining screws and remove the water pump pulley.

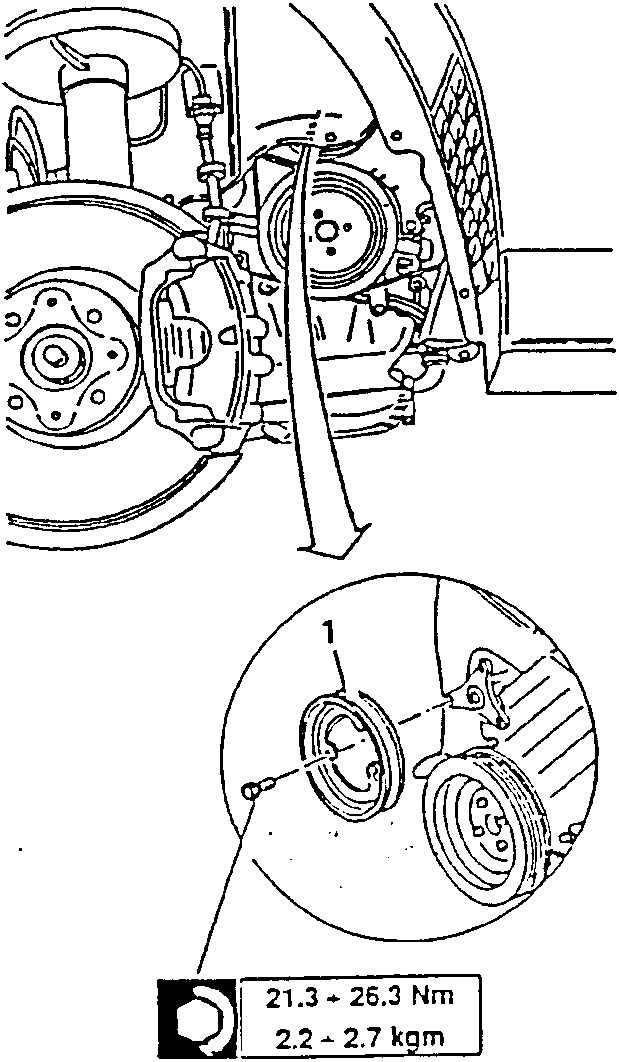

Water pump pulley with torque specification

21.3 ÷ 26.3 Nm
2.2 ÷ 2.7 kgm
