Vehicle characteristics and maintenanceEgr valve removal · page 3 of 5

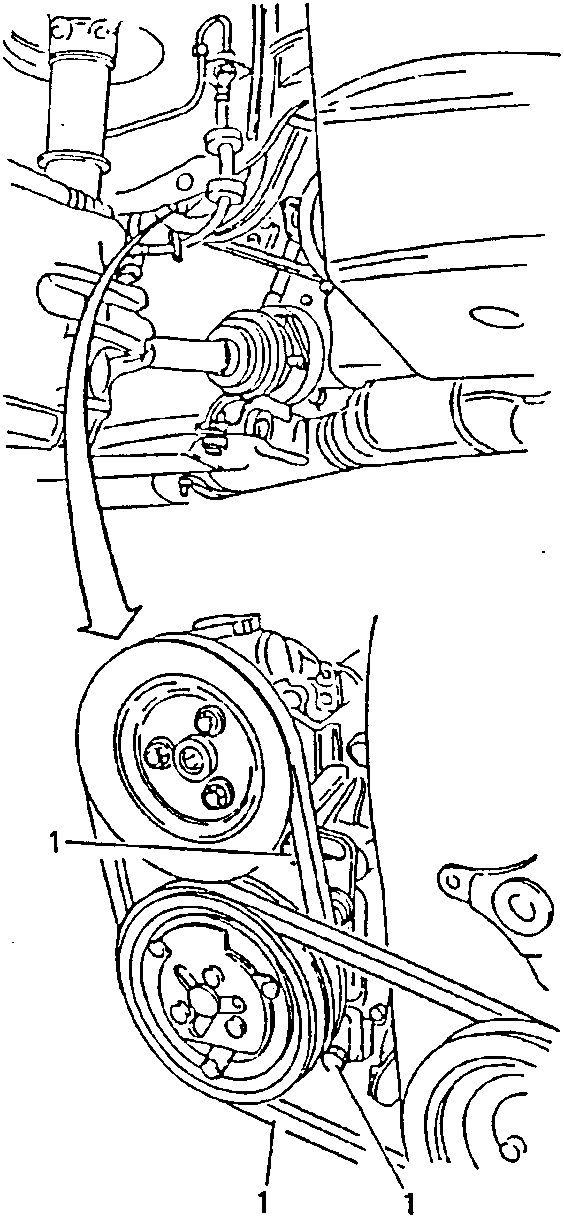

  1. Loosen the two upper screws and the two I bolts securing the air conditioning compressor and remove the drive belt.
Illustration showing loosening screws and removing drive belt from air conditioning compressor
  1. Part name

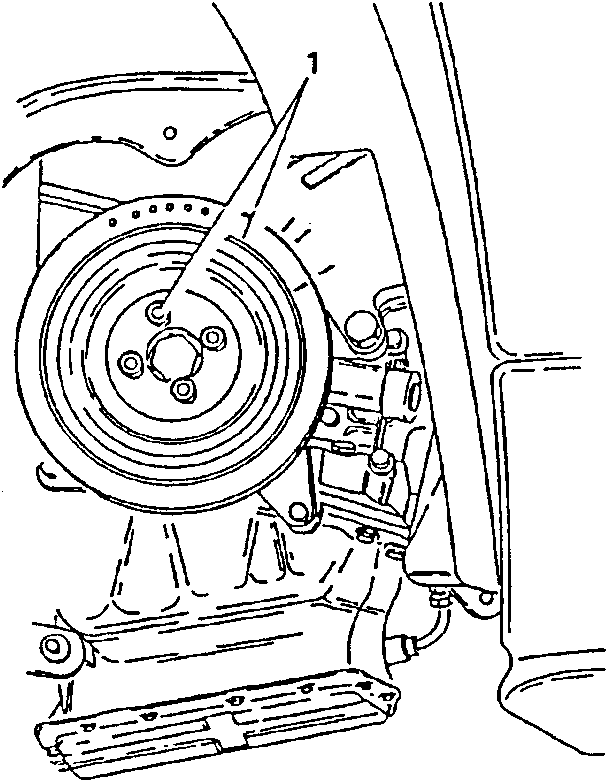

  2. Loosen the retaining screws and remove the auxiliary drive pulley.
Illustration showing removal of auxiliary drive pulley
  1. Part name

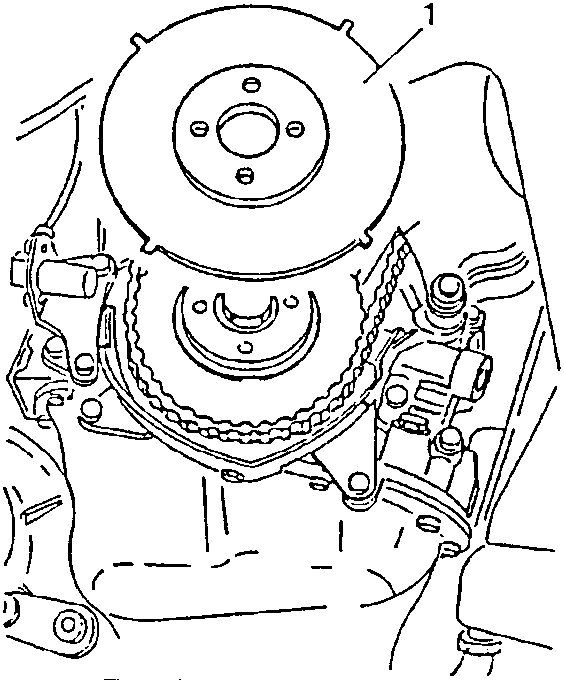

  2. Remove the phonic wheel of the r.p.m. and timing sensor.
Illustration showing removal of phonic wheel from r.p.m. and timing sensor
  1. Part name
