Alfa Romeo 155 Factory Service Manual (1992-1998)02 · Vehicle characteristics and maintenance
02 · Maintenance

Egr valve removal (page 5 of 5)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Egr valve removal
Vehicle characteristics and maintenanceEgr valve removal · page 5 of 5

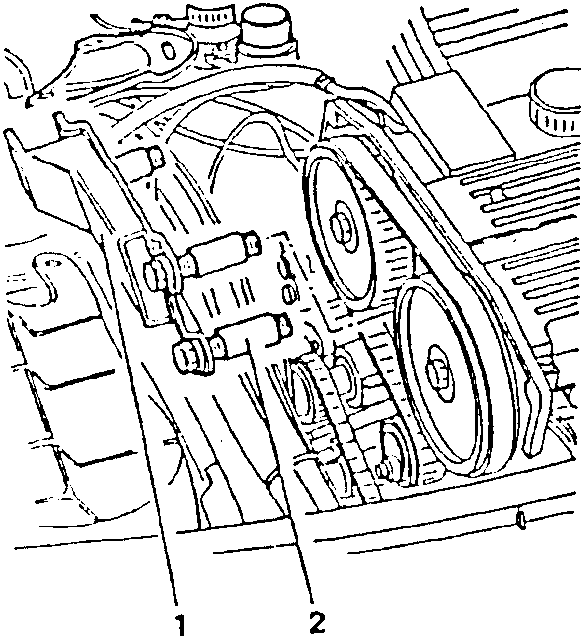

  1. Loosen the three screws and remove the engine damper rod support bracket.
  2. Remove the spacers.
Engine with timing belt cover and pulleys

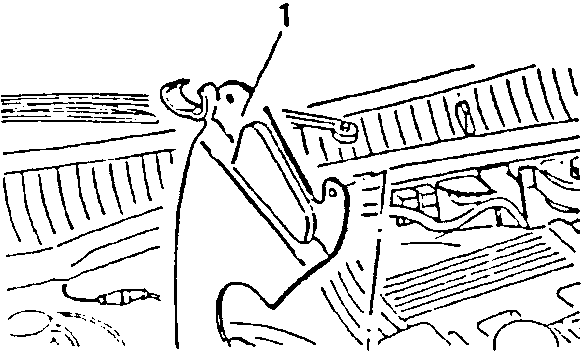

  1. Remove the metal timing belt cover which was loosened previously.
Tool removing a bolt from engine
  • Raise the vehicle.

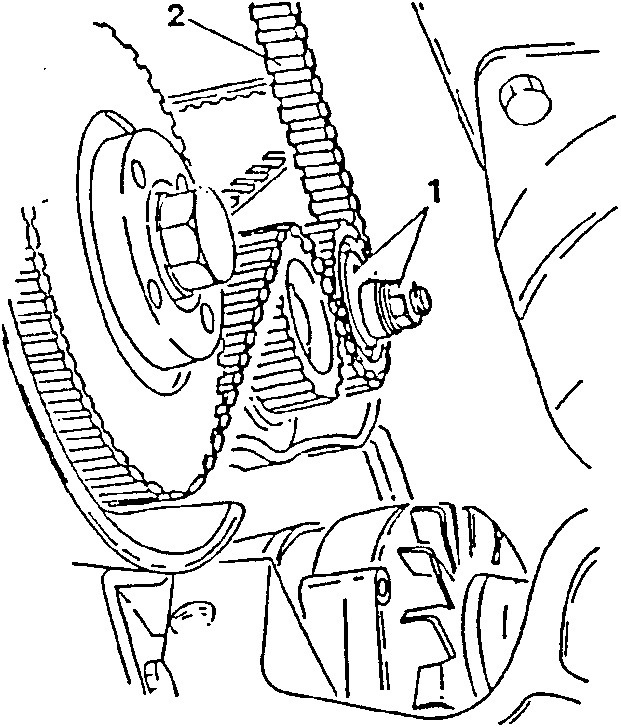

  1. Loosen the nut and remove the counter-shaft drive belt tensioner.
  2. Remove the counter-shaft drive belt.
Counter-shaft drive belt and tensioner
  • Lower the vehicle.

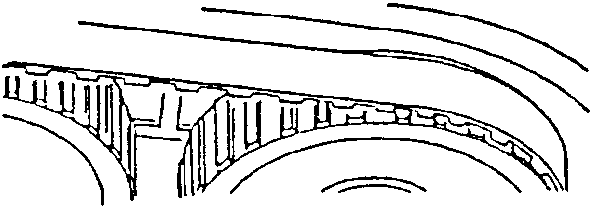

  1. Loosen the nut and remove the timing belt tensioner.
Timing belt area with pulleys
