Vehicle characteristics and maintenanceEgr valve removal · page 4 of 5

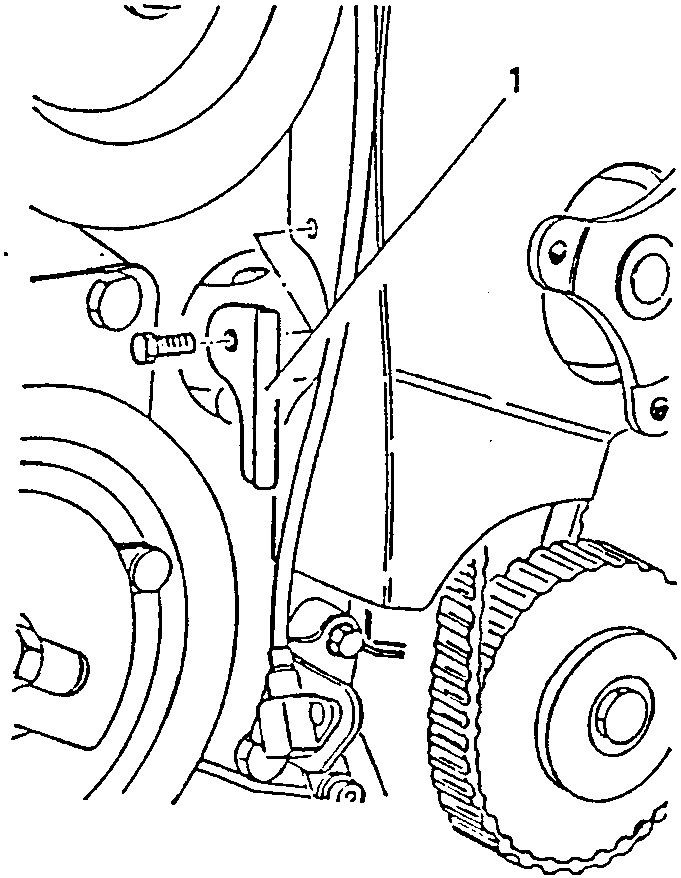

  1. Loosen the screw and remove the r.p.m. and timing sensor cable retaining plate.
Diagram showing a screw being loosened near an engine component with a gear and pulley visible

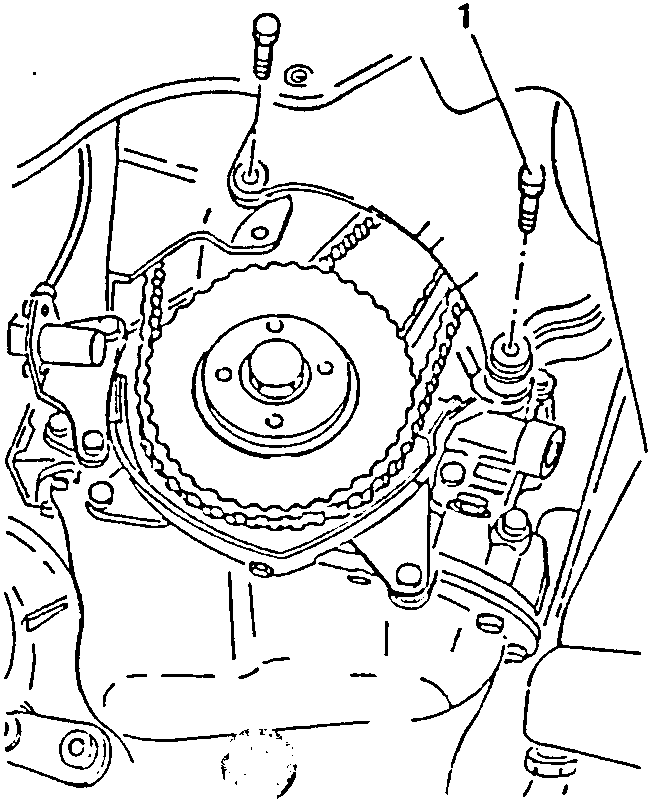

  1. Loosen the screws securing the timing belt cover.
Diagram showing two screws being loosened on a timing belt cover over a gear and chain assembly
  • Lower the vehicle.

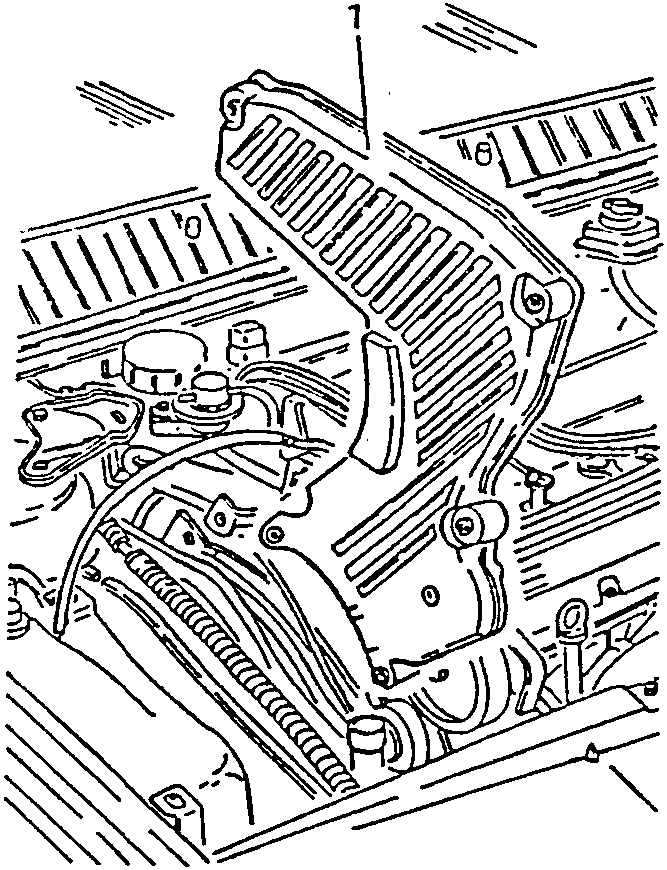

  1. Remove the timing belt cover.
Diagram showing the engine with a timing belt cover being removed, revealing the timing belt and pulleys

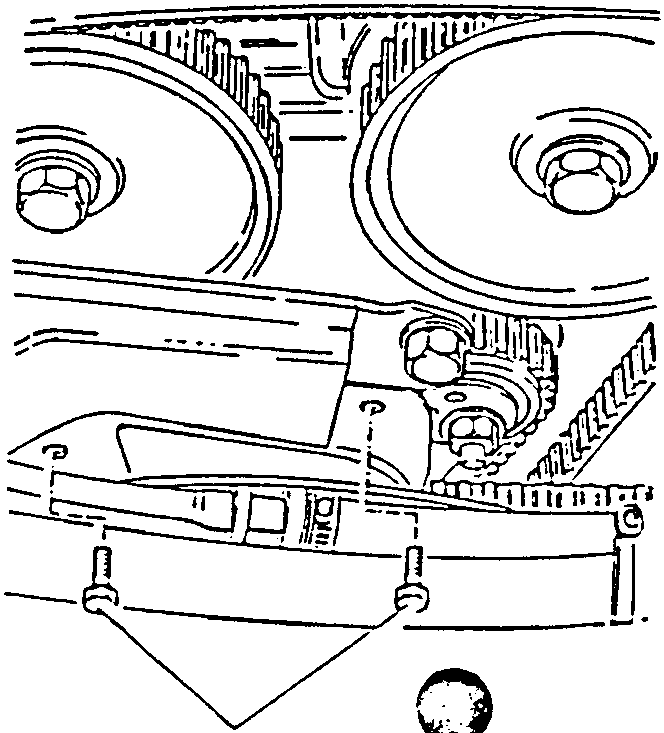

  1. Loosen the two screws securing the metal timing belt cover to the engine damper rod support bracket and remove the cover.
Diagram showing two screws on a metal timing belt cover attached to an engine damper rod support bracket
