Cable control

CABLE CONTROL

GEAR ENGAGEMENT AND SELECTION CABLES

Removing / Refitting

• Set the car on a lift.
• Remove the tunnel console (see GROUP 70).

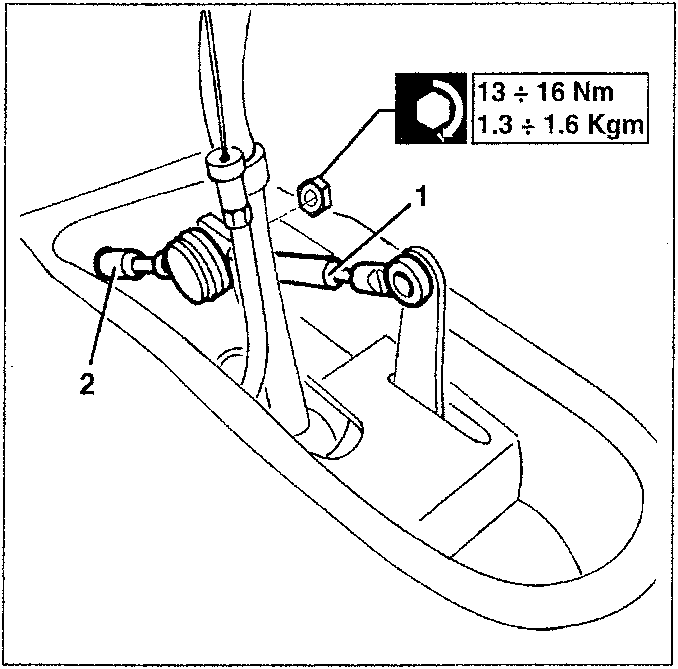

1. Disconnect the gear engagement cable from its fastening pin.
2. Disconnect the gear selection cable from the lever.

13 ÷ 16 Nm
1.3 ÷ 1.6 Kgm

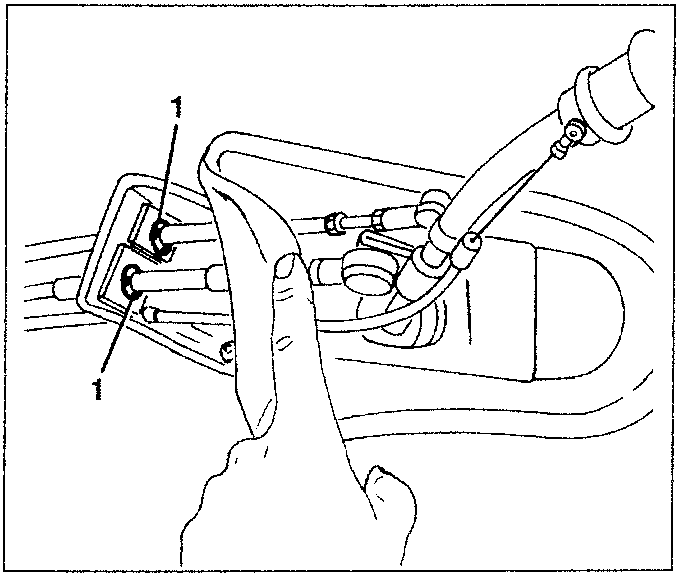

1. Raise the mat and remove the cable fastening clamps.

• Working under the car, remove the front and centre section of the exhaust piping (see GROUP 10).
• Remove the heat shield of the catalyst.

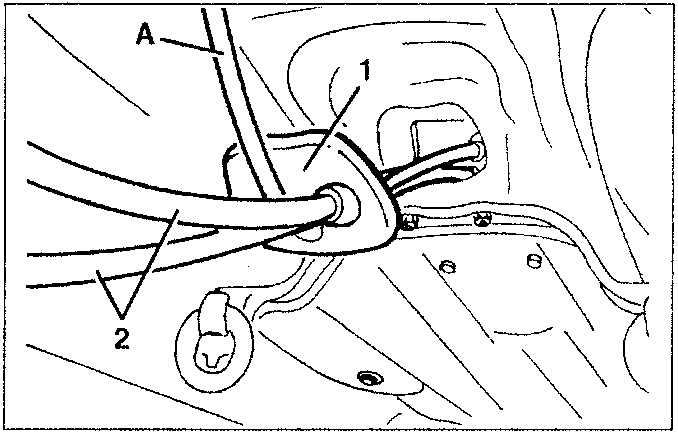

1. Withdraw the cable lead grommet from the body pulling the cables downwards.
   NOTE: Take care not to damage the reverse gear release cable (A) which is fastened to the gearshift lever.
2. Retrieve the cables pulling them from below. If necessary cut the cable lead grommet.

• Working in the engine compartment, remove the air cleaner complete with inlet sleeve (see GROUP 10).

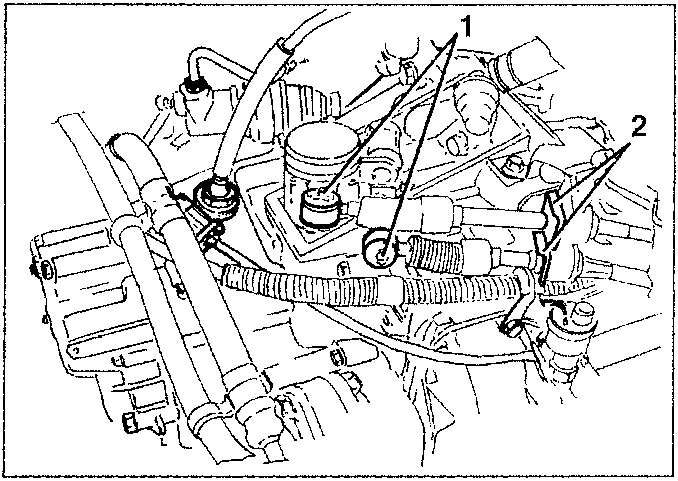

1. Disconnect the cables from the gear engagement device.
2. Remove the clamps fastening the cable to the bracket on the gearbox.
• Retrieve the cables.
