Gearshift lever

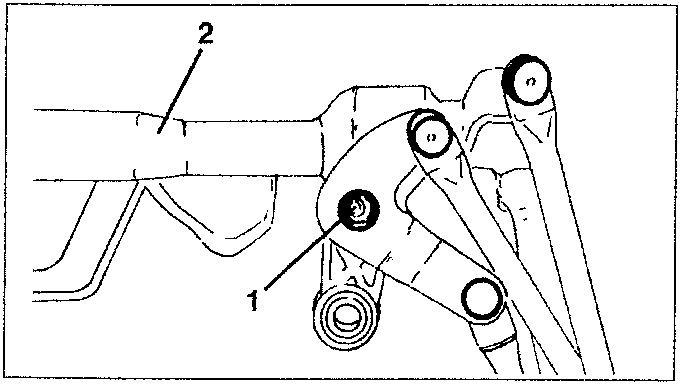

1. Disconnect the gearshift control rod from the support on the power steering box.
2. Retrieve the rod.

GEARSHIFT LEVER

Removing / Refitting

– Set the car on a lift.

– Working from inside the car, remove the tunnel console (see GROUP 70).

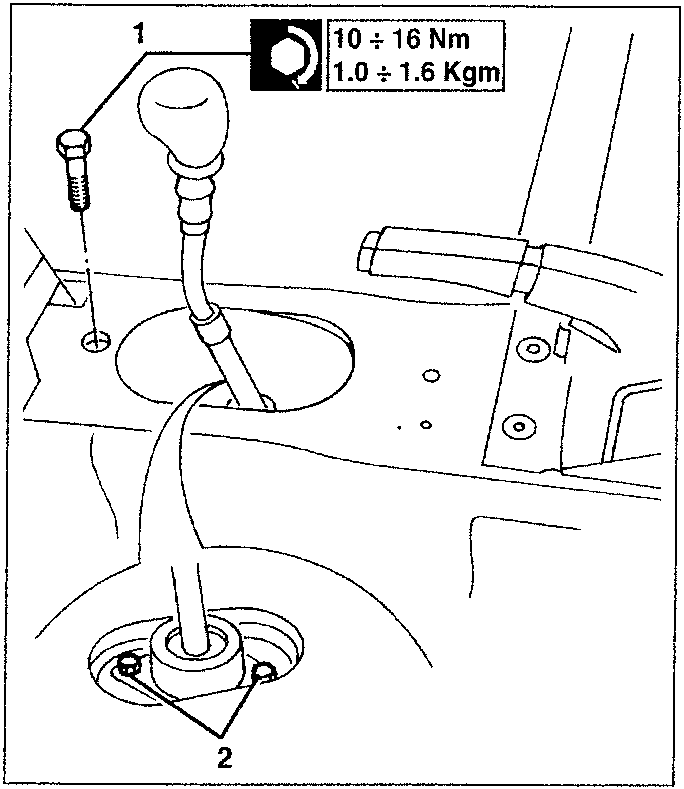

1. Slacken the bolt fastening the gearshift controls support on the body.
2. Slacken the two screws fastening the lever to the support, after eliminating the caulking.

10 ÷ 16 Nm
1.0 ÷ 1.6 Kgm

– Raise the car and remove the exhaust piping, front section (see GROUP 10).

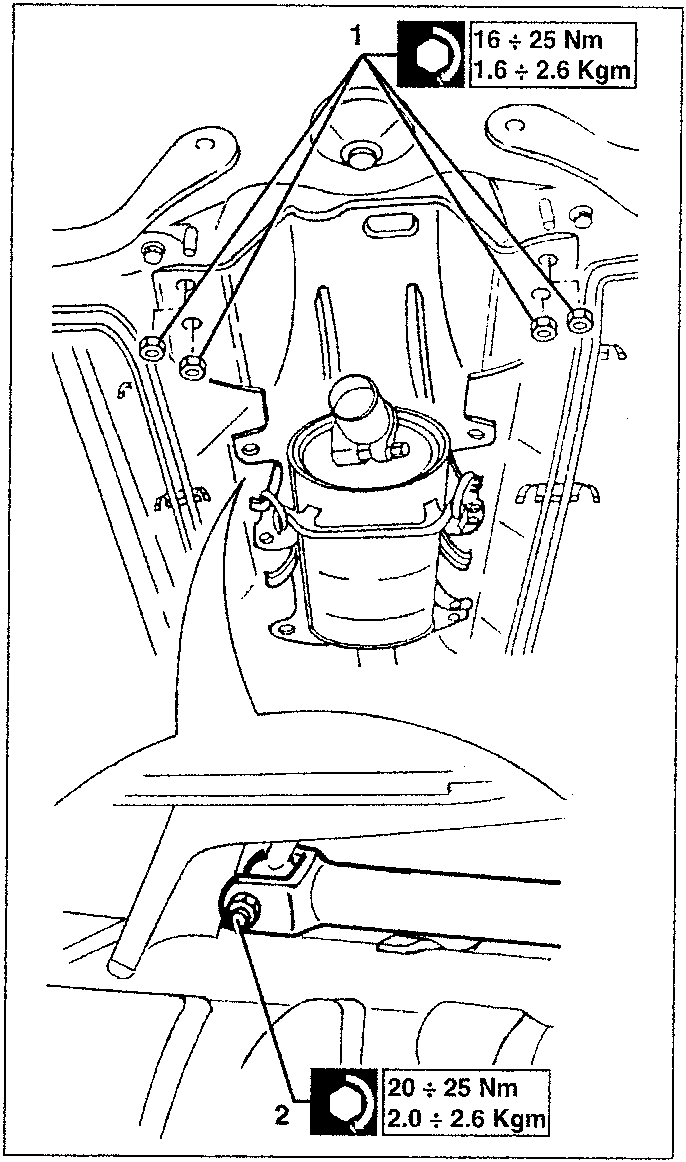

1. Loosen the rear fastenings and unscrew all the other fastenings of the gearbox controls support, to lower it.
2. Disconnect the gearshift control rod from the gearshift lever slackening the fastening bolt.

– Retrieve the gearshift lever complete with ball joint.

16 ÷ 25 Nm
1.6 ÷ 2.6 Kgm

20 ÷ 25 Nm
2.0 ÷ 2.6 Kgm
