Control with rods and tie-rods

CONTROL WITH RODS AND TIE-RODS

GEARSHIFT CONTROL TIE-RODS

Removing / Refitting

• Set the car on a lift.

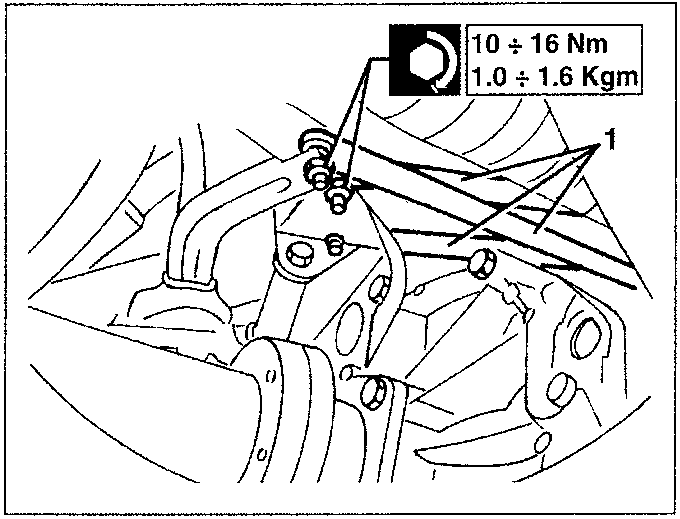

1. Work from under the car, disconnect the three tie-rods slackening the nuts fastening them to the bracket on the gearbox.

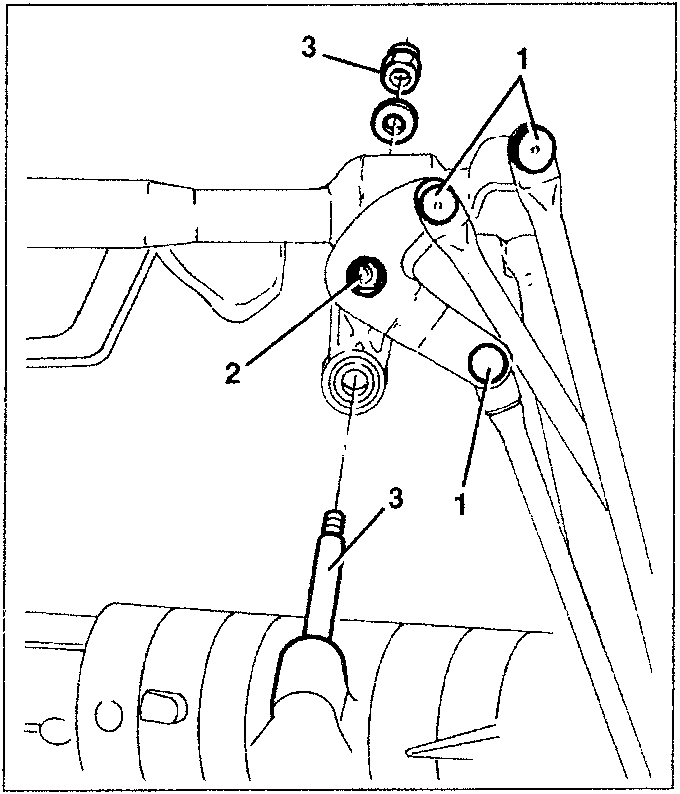

1. Disconnect the three tie-rods of the support fastened to the power steering, and then retrieve them.
2. If necessary remove the support, slacken the nut fastening it to the control rod.
3. Remove the support from the fastening pin on the steering box.

1. Part 1
2. Part 2
3. Part 3

GEARSHIFT CONTROL ROD

Removing / Refitting

• Set the car on a lift.
• Remove the exhaust piping, front section (see GROUP 10).

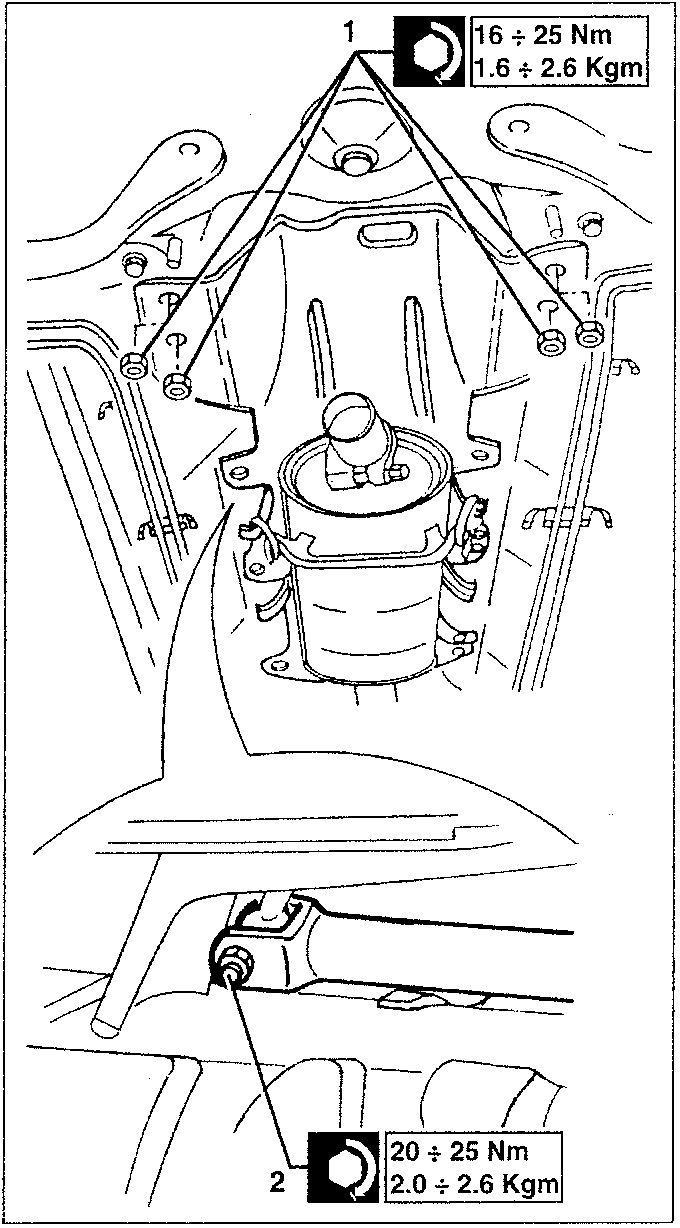

1. Slacken the four front nuts and loosen the other screws of the gearbox controls support, to lower the gearbox and gain access to the control rod.
2. Disconnect the gearshift control rod from the gear-shift lever slackening the fastening bolt.

16 ÷ 25 Nm
1.6 ÷ 2.6 Kgm

20 ÷ 25 Nm
2.0 ÷ 2.6 Kgm
